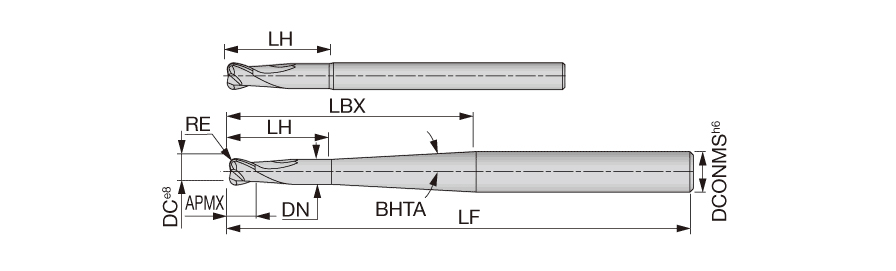

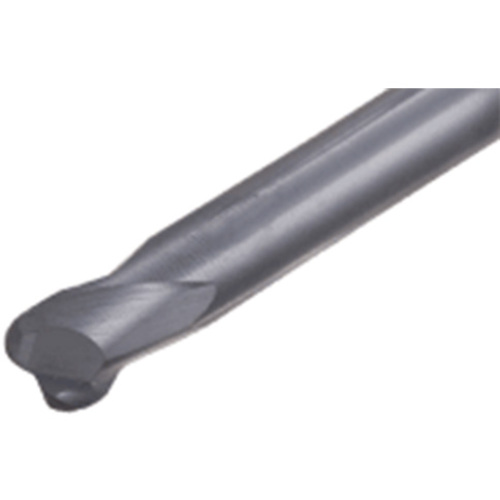

TETR040A2-3/16C06R1M80 AH725
SQ End Mill; 4 mm Dia. × 3 mm LOC × 6 mm Shank Dia. × 80 mm OAL ; 1 mm RE ; 2 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 4 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Application | | Profile Milling | |
| Depth of Cut Maximum (APMX) | 3 mm | Corner Radius (RE) | 1 mm |
| Overall Length (OAL) | 80 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Neck Diameter (DN) | 3.7 mm |
| Coating | TiAlN | Head Length (LH) | 16 mm |
| Flute Count (NOF) | 2 | Neck Length (LN) | 16 mm |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
Product Features
| Family Description | 2 flute toroidal endmill | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.066
