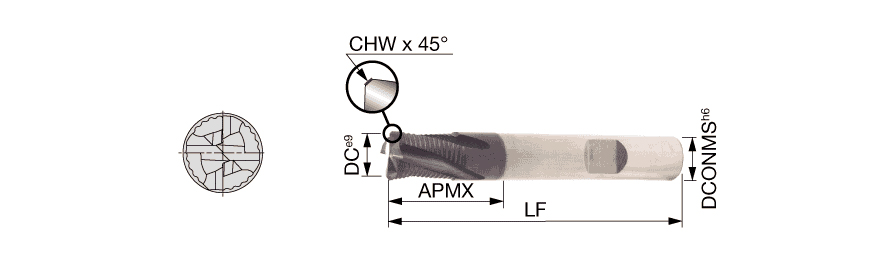

TECR160T4M-32W16-92 AH725
| Cutting Diameter (DC) | 16 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 32 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 92 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Shank Type | Weldon |
Product Features
| Family Description | 4 flute roughing endmill, 20 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.525
