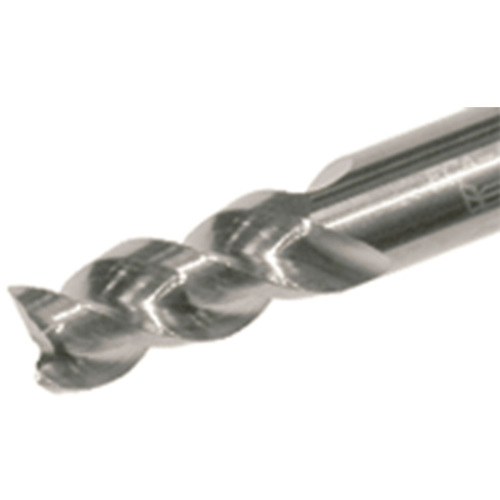

TECA200B3-38C20-104 KS15F

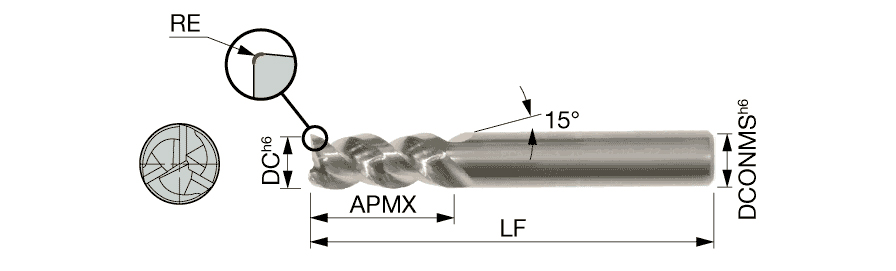

SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 0.2 mm RE ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 20 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 38 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 104 mm | Corner Radius (RE) | 0.2 mm |
| Cutting Edge Material | Carbide | Grade | KS15F |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Family Description | 3 flute endmill, 45 deg helix angle, for aluminium machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
