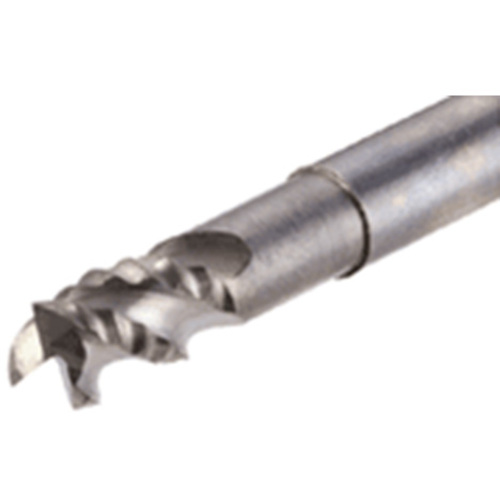

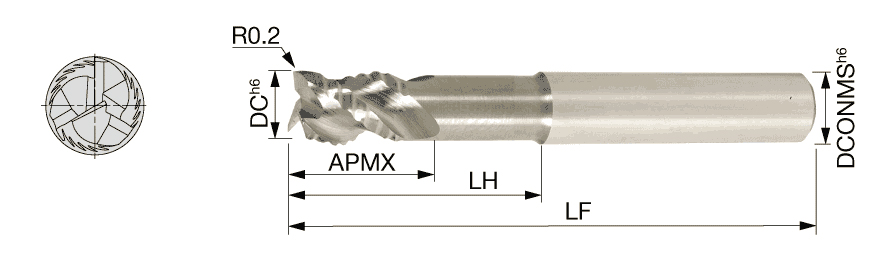

TECR200B3-17/53C20R02A104 KS15F
SQ End Mill; 20 mm Dia. × 17 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 0.2 mm RE ; 3 FL ; Carbide ; Uncoated
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 17 mm | Corner Radius (RE) | 0.2 mm |
| Overall Length (OAL) | 104 mm | Grade | KS15F |
| Cutting Edge Material | Carbide | Head Length (LH) | 53 mm |
| Coating | Uncoated | Neck Length (LN) | 53 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius |
Product Features
| Family Description | 3 flute roughing endmill, 45 deg helix angle, relieved neck type, for aluminium machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
