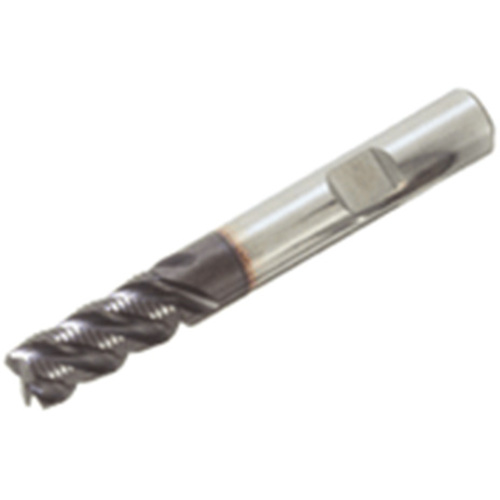

TECR120B4X-18/48W12-100 AH725
SQ End Mill; 12 mm Dia. × 18 mm LOC × 12 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; TiAlN

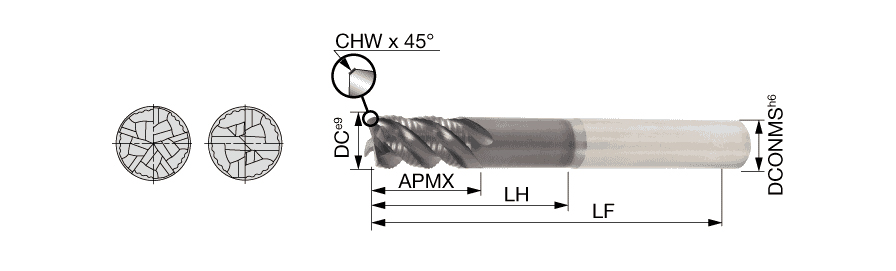

| Cutting Diameter (DC) | 12 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Corner Chamfer Width (CHW) | 0.35 mm |
| Depth of Cut Maximum (APMX) | 18 mm | Grade | AH725 |
| Overall Length (OAL) | 100 mm | Head Length (LH) | 48 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 48 mm |
| Coating | TiAlN | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Shank Type | Weldon | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| End Shape | Chamfer | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
Product Features
| Family Description | 4-5 flute roughing endmill, 45 deg helix angle, long neck type (4xD) | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.333
