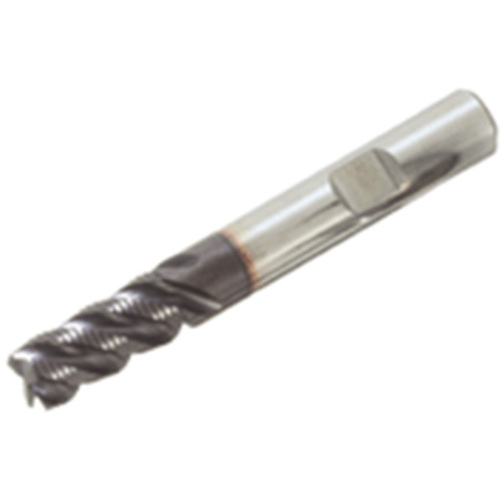

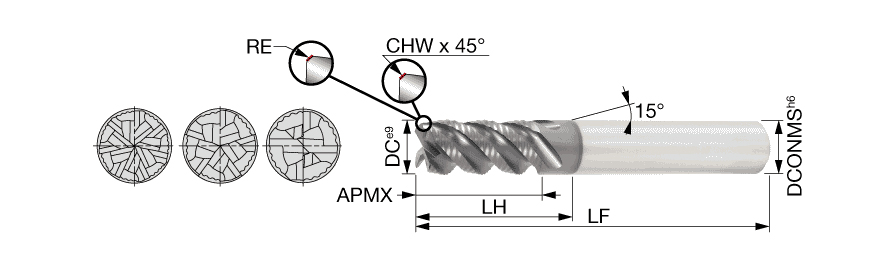

TECR200B7M-40W20-104 AH725
SQ End Mill; 20 mm Dia. × 40 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 7 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 40 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Overall Length (OAL) | 104 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
Product Features
| Family Description | 4-7 flute roughing endmill, 45 deg helix angle | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
