TERC120E3-25C12-83 KS15F

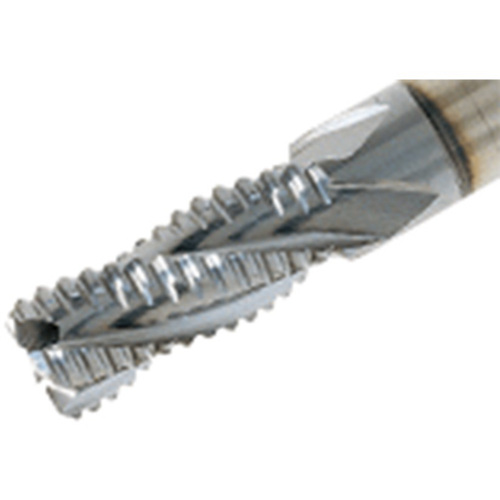

SQ End Mill; 12 mm Dia. × 25 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 3 FL ; Carbide ; Uncoated

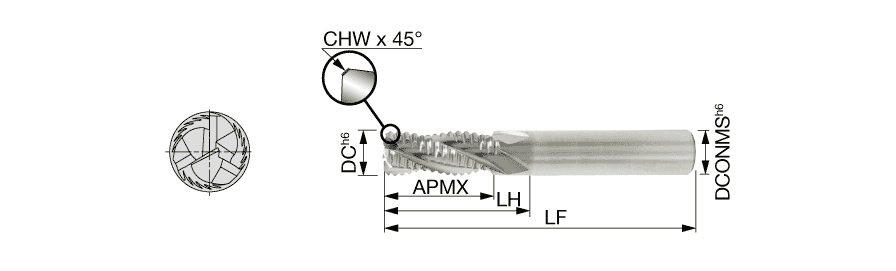

| Cutting Diameter (DC) | 12 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 25 mm | Corner Chamfer Width (CHW) | 0.6 mm |
| Overall Length (OAL) | 83 mm | Grade | KS15F |
| Cutting Edge Material | Carbide | Head Length (LH) | 37 mm |
| Coating | Uncoated | Neck Length (LN) | 37 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer |
Product Features
| Family Description | 3 flute roughing endmill, 38 deg helix angle, for aluminium alloy and non-ferrous metal | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.271
