TERF160A4-32C16-92 AH725

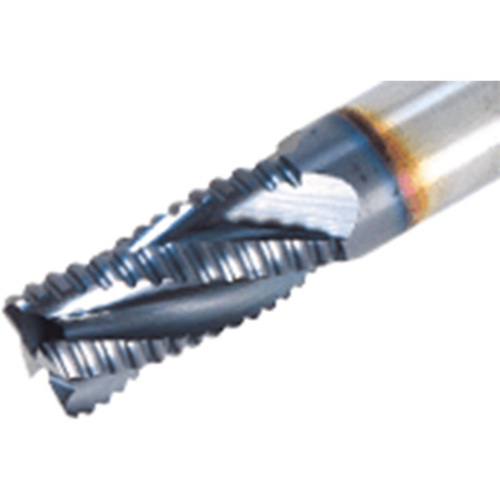

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 4 FL ; Carbide ; TiAlN

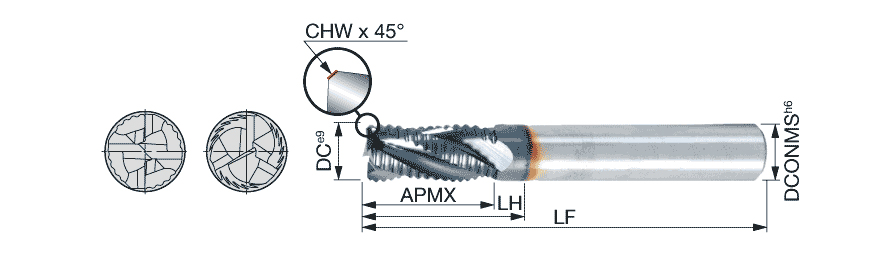

| Cutting Diameter (DC) | 16 mm | End Shape | Chamfer |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 32 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 92 mm | Corner Chamfer Width (CHW) | 0.5 mm |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Head Length (LH) | 44 mm |
| Flute Count (NOF) | 4 | Neck Length (LN) | 44 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Family Description | 3-4 flute roughing endmill, 30 deg or 38 helix angle, for alloy steel and stainless steel | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.522
