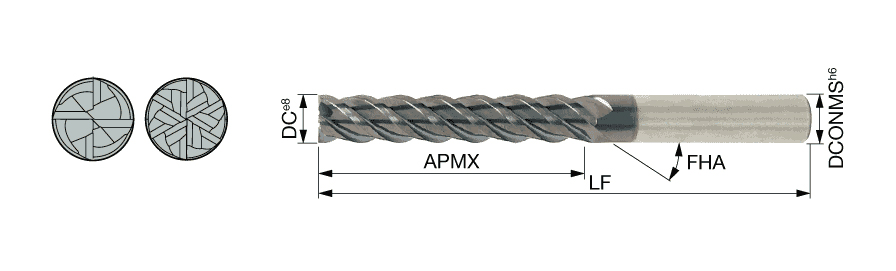

TEC200B6X-80C20-150 AH725

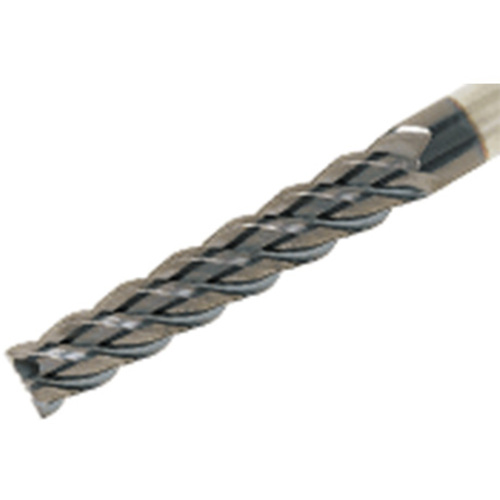

SQ End Mill; 20 mm Dia. × 80 mm LOC × 20 mm Shank Dia. × 150 mm OAL ; 6 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 20 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 80 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 150 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Flute Count (NOF) | 6 | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Family Description | 4 or 6 flute endmill, 45 deg helix angle, extra long type | Country of Origin | ISRAEL |
