TEC060B3-16C06-57 AH725

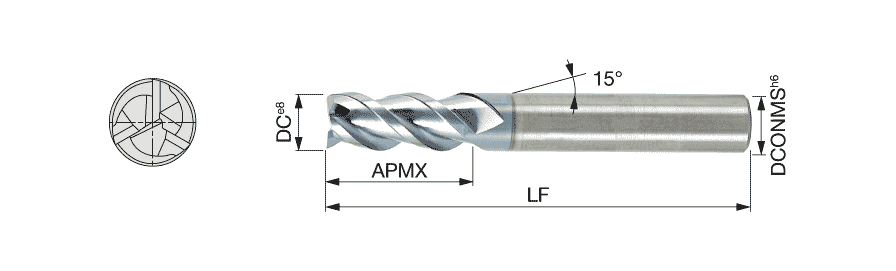

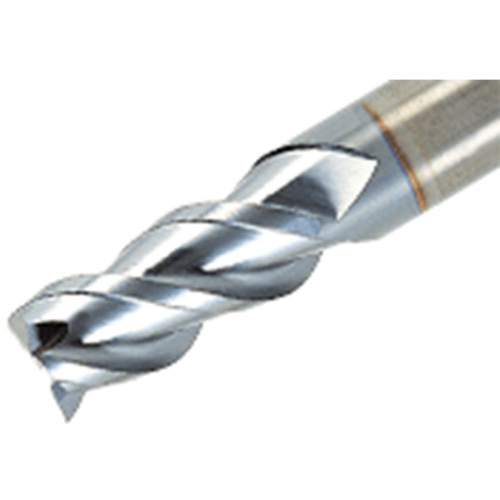

SQ End Mill; 6 mm Dia. × 16 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 3 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 6 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 57 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Grade | AH725 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
Product Features
| Family Description | 3 flute slotting endmill, 45 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.053
