TECC120E3-25C12-83 AH725

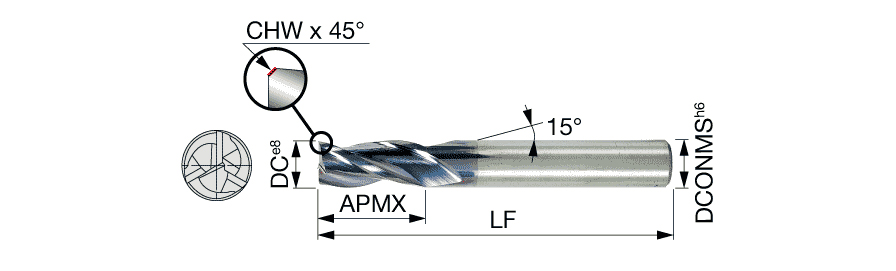

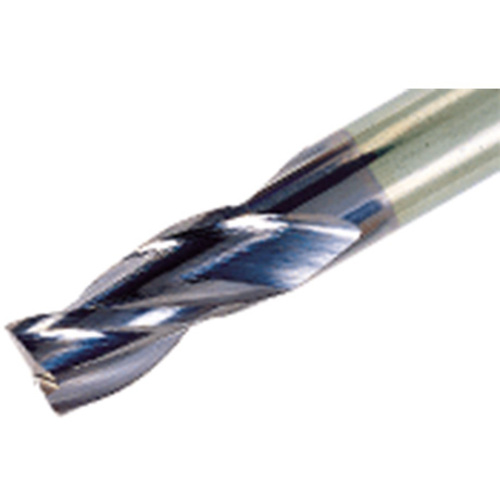

SQ End Mill; 12 mm Dia. × 25 mm LOC × 12 mm Shank Dia. × 83 mm OAL ; 3 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 12 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 12 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 83 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.25 mm |
| Coating | TiAlN | Grade | AH725 |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 3 flute slotting endmill, 38 deg or 45 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
2.714
