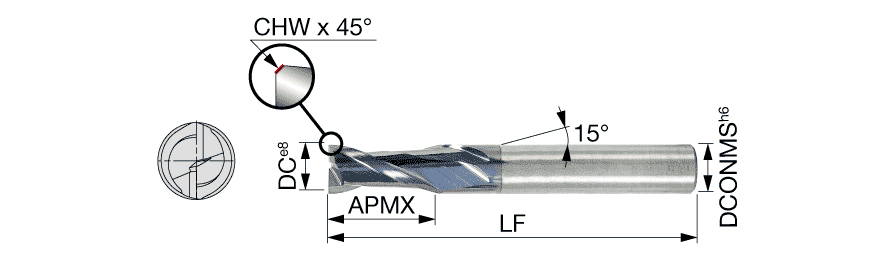

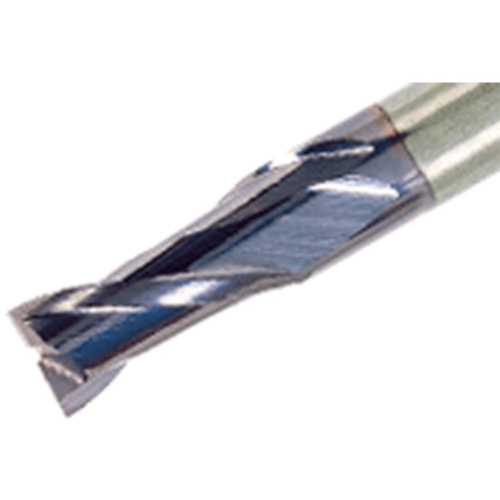

TECC160A2-32C16-92 AH725
SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 2 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 16 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 16 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 32 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 92 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.25 mm |
| Coating | TiAlN | Grade | AH725 |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 2 flute slotting endmill, 30 deg or 45 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.487
