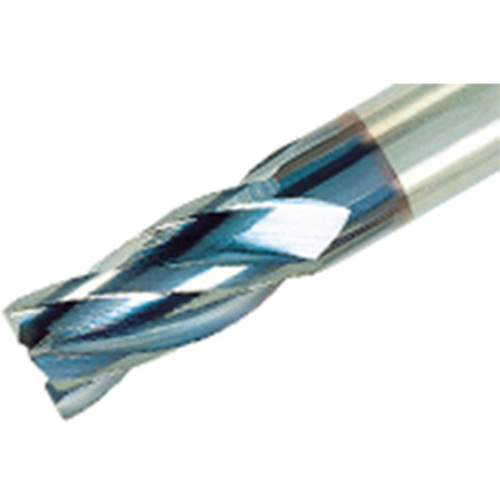

TECC200A4-38C20-104 AH725
SQ End Mill; 20 mm Dia. × 38 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 4 FL ; Carbide ; TiAlN

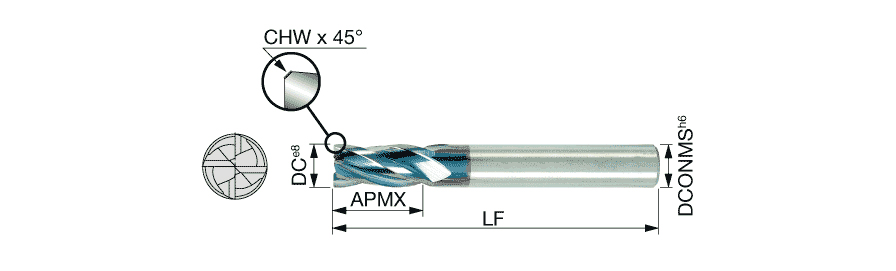

| Cutting Diameter (DC) | 20 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 20 mm | End Shape | Chamfer |
| Depth of Cut Maximum (APMX) | 38 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 104 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Corner Chamfer Width (CHW) | 0.25 mm |
| Coating | TiAlN | Grade | AH725 |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, 30 deg or 45 deg helix angle | Country of Origin | ISRAEL |
