TEBL100A6-07R20R1-72 AH710

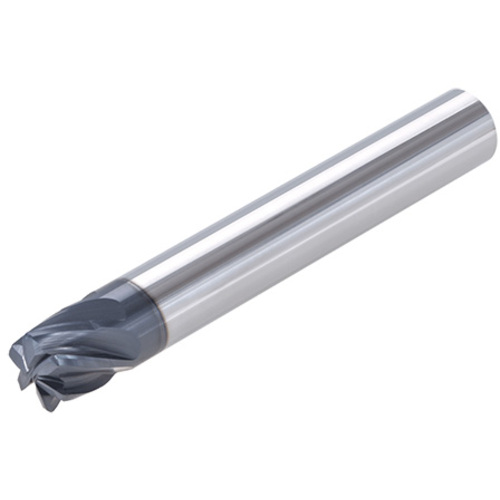

SQ End Mill; 10 mm Dia. × 7 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 1 mm RE ; 6 FL ; Carbide ; TiAlN

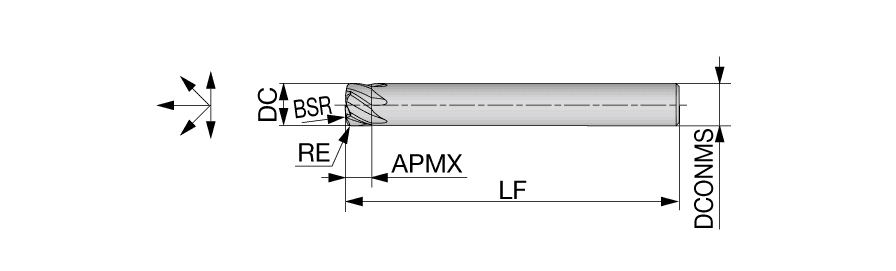

| Cutting Diameter (DC) | 10 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 7 mm | Application | | Profile Milling | |
| Overall Length (OAL) | 72 mm | Corner Radius (RE) | 1 mm |
| Cutting Edge Material | Carbide | Grade | AH710 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Shank Type | Round |
Product Features
| Family Description | Lens, 4, 6 flutes, semi-finishing - finishing, high productive profiling | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.190
