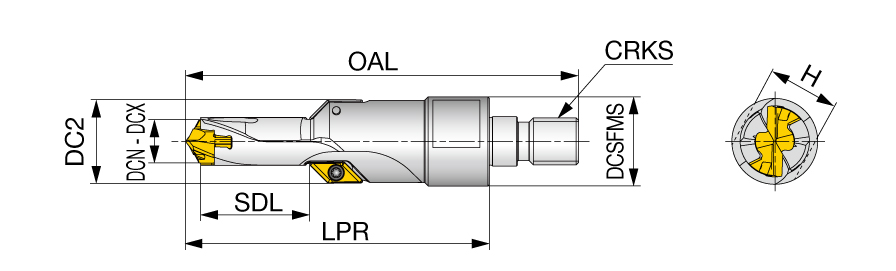

TID085L25A90M08
| Application | | Chamfering | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 8 | Master Insert Identification (MIID) | DMP085 |
| Cutting Diameter Minimum (DCN) | 0.3346″ | Point Length (PL) | 0.051″ |
| Cutting Diameter Maximum (DCX) | 0.3504″ | Body Material | Steel |
| Overall Length (OAL) | 2.964″ | Flange Diameter (DF) | 0.61″ |
| Shank Length (LS) | 0.669″ |
Product Features

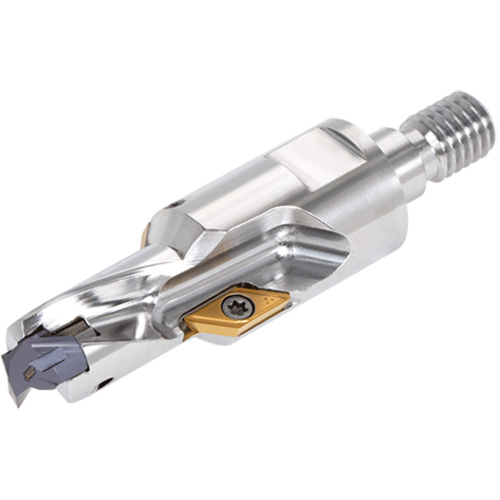

| Family Description | DrillMeister Modular body with chamfering insert, with TungFlex connection. Dedicated line up for pre-thread drilling of metric and UNF threads | Country of Origin | JAPAN |

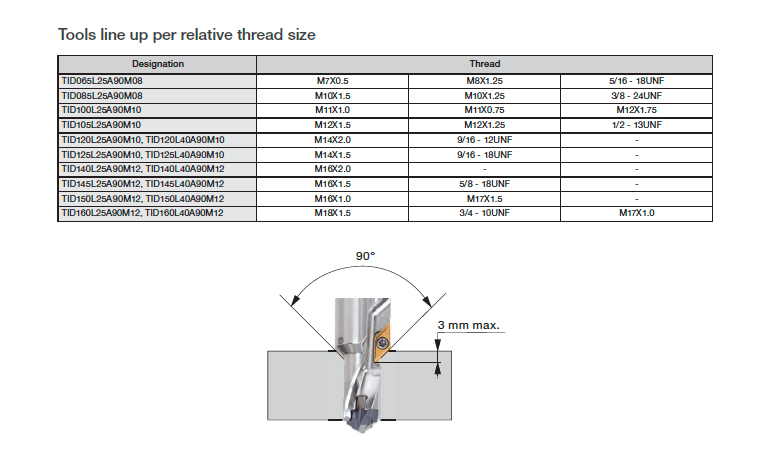

| Remarks | For tools line up per relative thread size, click on "More Info". |
