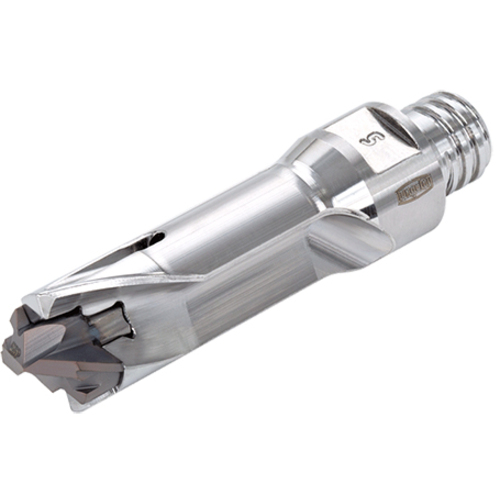

TID085S06-2

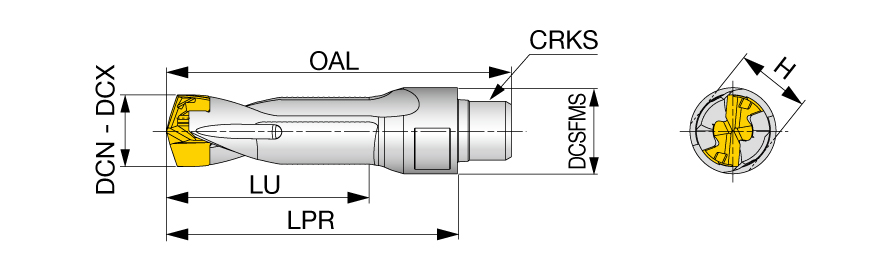

| Usable Length (LU) | 0.768″ | Shank Length (LS) | 0.248″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 8 | Master Insert Identification (MIID) | DMP085 |
| Cutting Diameter Minimum (DCN) | 0.3346″ | Point Length (PL) | 0.051″ |
| Cutting Diameter Maximum (DCX) | 0.3504″ | Body Material | Steel |
| Overall Length (OAL) | 1.553″ | Flange Diameter (DF) | 0.394″ |
Product Features
| Family Description | DrillMeister Modular body with TungMeister connection | Country of Origin | JAPAN |
| Remarks | Wrench sold separately. |
