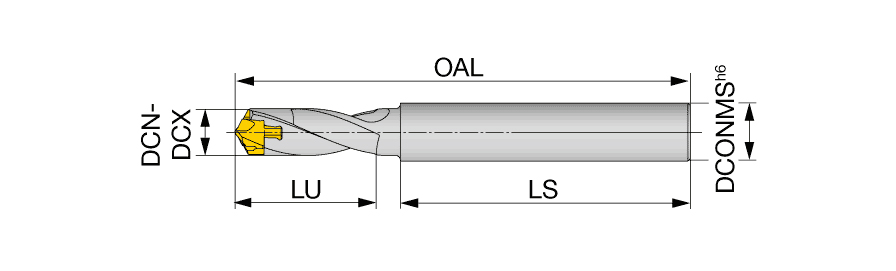

| Usable Length (LU) | 1.303″ | Overall Length (OAL) | 4.811″ |
| Application | | General Drilling | | Shank Length (LS) | 2.756″ |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.709″ | Master Insert Identification (MIID) | DMP160 |
| Insert Seat Size Code (SSC) | 16 | Point Length (PL) | 0.095″ |
| Cutting Diameter Minimum (DCN) | 0.6299″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.6654″ |

Product Features

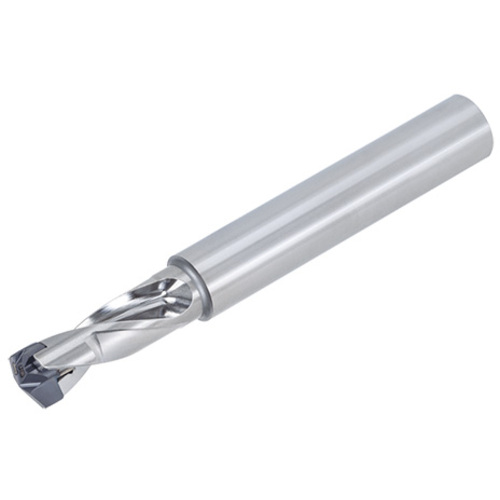

| Family Description | DrillMeister Exchangeable head drill with cylindrical shank (For external coolant supply) | Country of Origin | JAPAN |
| Remarks | An overall length (OAL) differs based on each head geometry. |
Shipping Info
Package Weight
0.000
