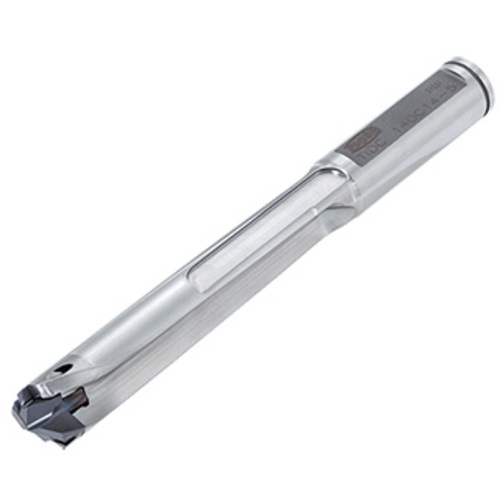

TIDC080C8-5

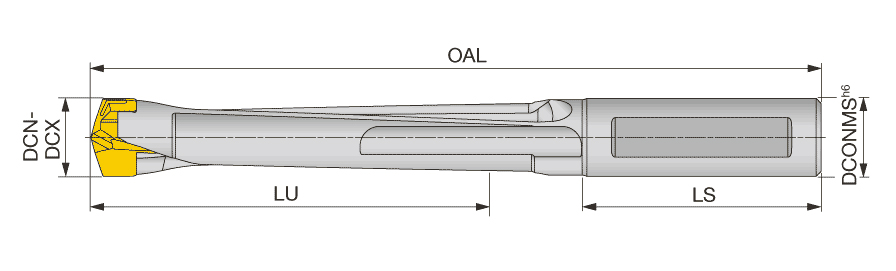

Drill; 0.3149″ to 0.3307″ Dia. × 0.315″ Shank Dia. × 3.634″ OAL × 1.575″ LU × 1.417″ Shank Length
| Usable Length (LU) | 1.575″ | Overall Length (OAL) | 3.634″ |
| Application | | General Drilling | | Shank Length (LS) | 1.417″ |
| Tool Type | indexable head drills | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 8 | Master Insert Identification (MIID) | DMP080 |
| Cutting Diameter Minimum (DCN) | 0.3149″ | Point Length (PL) | 0.047″ |
| Cutting Diameter Maximum (DCX) | 0.3307″ | Body Material | Steel |
Product Features
| Family Description | DrillMeister TIDC L/D=5 Indexable head drills | Country of Origin | S.Korea |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
