TIDC075C8-3

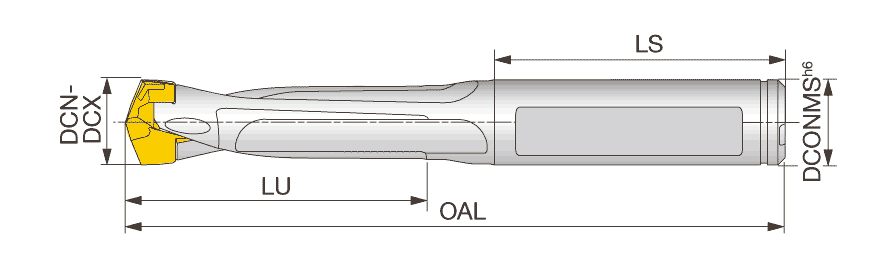

Drill; 0.2953″ to 0.311″ Dia. × 0.315″ Shank Dia. × 2.76″ OAL × 0.906″ LU × 1.417″ Shank Length
| Usable Length (LU) | 0.906″ | Overall Length (OAL) | 2.76″ |
| Application | | General Drilling | | Shank Length (LS) | 1.417″ |
| Tool Type | indexable head drills | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 0.315″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 7 | Master Insert Identification (MIID) | DMP075 |
| Cutting Diameter Minimum (DCN) | 0.2953″ | Point Length (PL) | 0.044″ |
| Cutting Diameter Maximum (DCX) | 0.311″ | Body Material | Steel |
Product Features
| Family Description | DrillMeister TIDC L/D=3 Indexable head drills | Country of Origin | S.Korea |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
