TIDU0551R0625-12

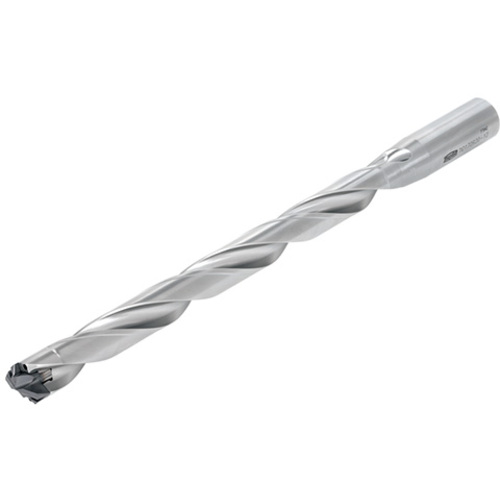

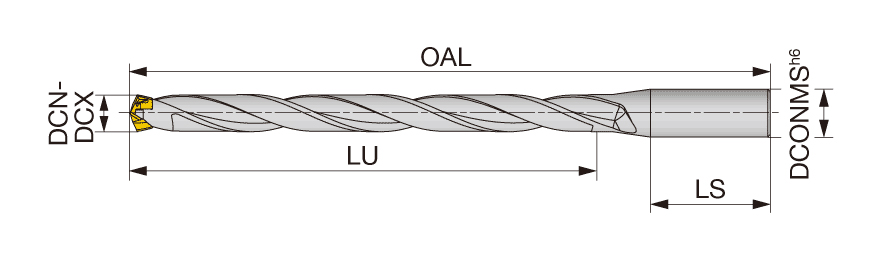

Drill; 0.551″ to 0.567″ Dia. × 5/8″ Shank Dia. × 9.291″ OAL × 6.714″ LU × 1.89″ Shank Length
| Usable Length (LU) | 6.714″ | Shank Length (LS) | 1.89″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Insert Seat Size Code (SSC) | 14 | Master Insert Identification (MIID) | DMP140 |
| Cutting Diameter Minimum (DCN) | 0.551″ | Point Length (PL) | 0.083″ |
| Cutting Diameter Maximum (DCX) | 0.567″ | Body Material | Steel |
| Overall Length (OAL) | 9.291″ |
Product Features
| Family Description | DrillMeister Indexable head drill with cylindrical shank | Country of Origin | Japan |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Package Weight
1.1
