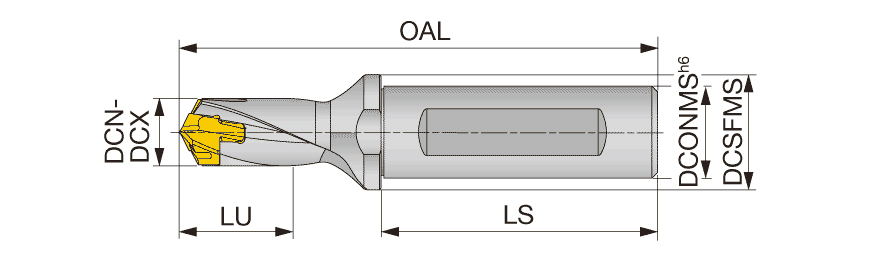

| Usable Length (LU) | 1.417″ | Shank Length (LS) | 2.205″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.984″ | Master Insert Identification (MIID) | DMP210 |
| Insert Seat Size Code (SSC) | 21 | Point Length (PL) | 1/8″ |
| Cutting Diameter Minimum (DCN) | 0.8267″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.8622″ | Flange Diameter (DF) | 1.26″ |
| Overall Length (OAL) | 4.743″ |
Product Features

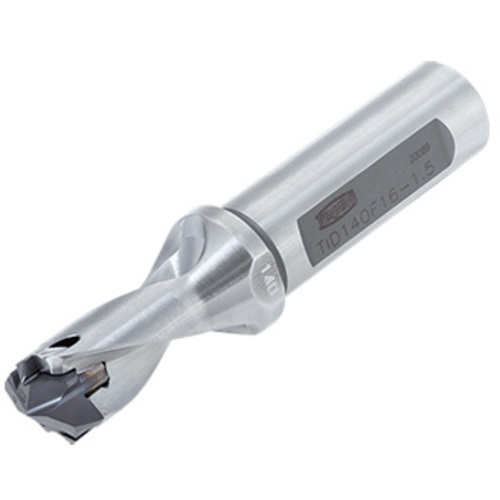

| Family Description | DrillMeister Indexable head drill with flanged shank | Country of Origin | JAPAN |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Package Weight
0.820
