TIDU0453F0625-5

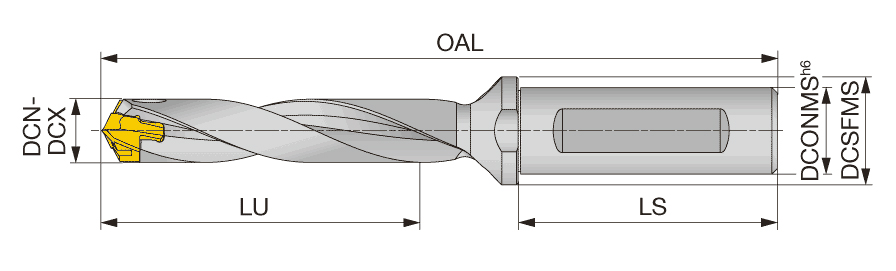

Drill; 0.453″ to 0.469″ Dia. × 5/8″ Shank Dia. × 4.807″ OAL × 2.365″ LU × 1.89″ Shank Length
| Usable Length (LU) | 2.365″ | Shank Length (LS) | 1.89″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Master Insert Identification (MIID) | DMP115 |
| Insert Seat Size Code (SSC) | 11 | Point Length (PL) | 0.069″ |
| Cutting Diameter Minimum (DCN) | 0.453″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.469″ | Flange Diameter (DF) | 0.787″ |
| Overall Length (OAL) | 4.807″ |
Product Features

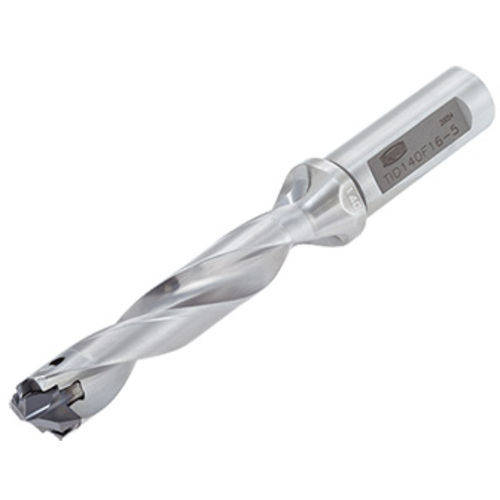

| Family Description | DrillMeister Indexable head drill with flanged shank | Country of Origin | Japan |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Package Weight
0.306
