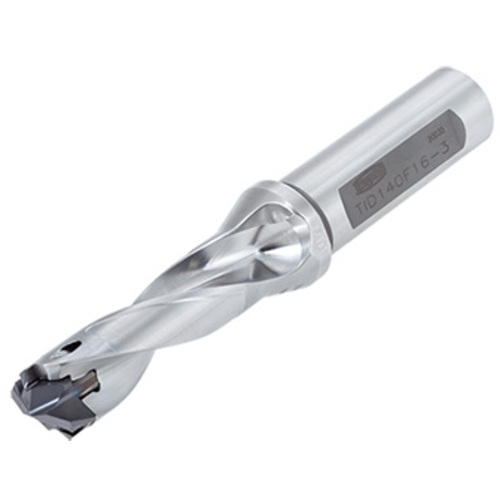

TIDU0591F0750-3

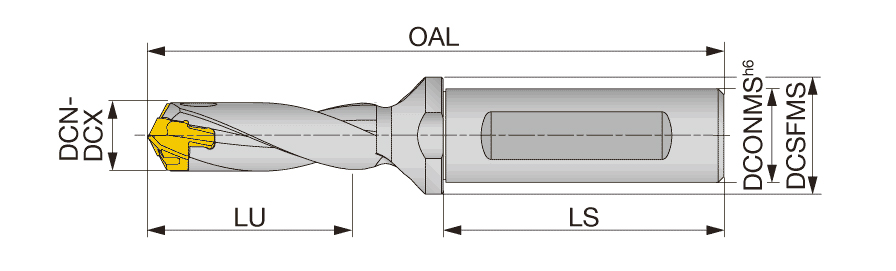

Drill; 0.591″ to 0.626″ Dia. × 3/4″ Shank Dia. × 4.673″ OAL × 1.88″ LU × 1.969″ Shank Length
| Usable Length (LU) | 1.88″ | Shank Length (LS) | 1.969″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Master Insert Identification (MIID) | DMP150 |
| Insert Seat Size Code (SSC) | 15 | Point Length (PL) | 0.089″ |
| Cutting Diameter Minimum (DCN) | 0.591″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.626″ | Flange Diameter (DF) | 0.984″ |
| Overall Length (OAL) | 4.673″ |
Product Features
| Family Description | DrillMeister Indexable head drill with flanged shank | Country of Origin | Japan |
| Remarks | Note: An overall length depends on the type of drill head which is mounted on. |
Shipping Info
Package Weight
0.445
