TISU1457F1500-5

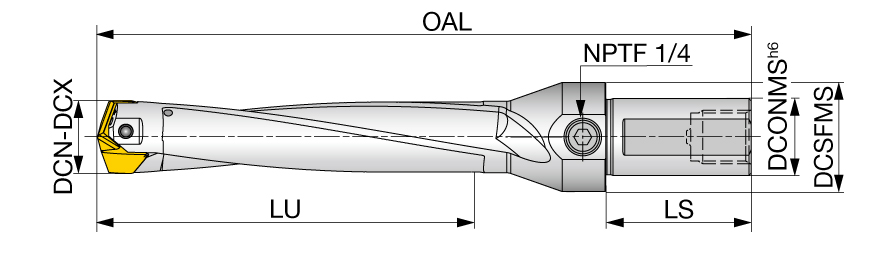

Drill; 1.457″ to 1.492″ Dia. × 1-1/2″ Shank Dia. × 12.673″ OAL × 7.512″ LU × 2.677″ Shank Length
| Usable Length (LU) | 7.512″ | Shank Length (LS) | 2.677″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D - 5 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Master Insert Identification (MIID) | SMP370 |
| Insert Seat Size Code (SSC) | 37 | Point Length (PL) | 0.265″ |
| Cutting Diameter Minimum (DCN) | 1.457″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.492″ | Flange Diameter (DF) | 2.165″ |
| Overall Length (OAL) | 12.673″ |
Product Features
| Family Description | DrillForceMeister TIS L/D=5 Indexable head drill | Country of Origin | S.Korea |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
