TISU1024F1250-3

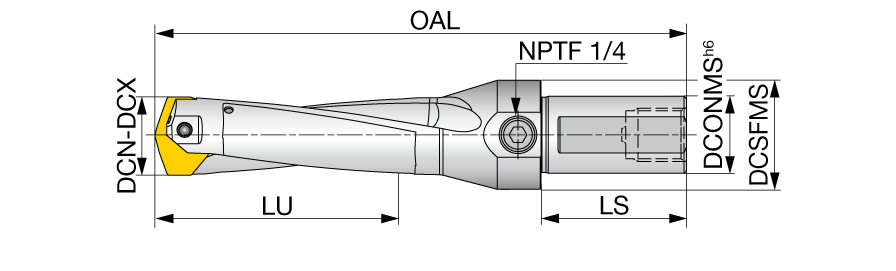

Drill; 1.024″ to 1.059″ Dia. × 1-1/4″ Shank Dia. × 7.677″ OAL × 3.23″ LU × 2.362″ Shank Length
| Usable Length (LU) | 3.23″ | Shank Length (LS) | 2.362″ |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D = 3 | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Master Insert Identification (MIID) | SMP260 |
| Insert Seat Size Code (SSC) | 26 | Point Length (PL) | 0.186″ |
| Cutting Diameter Minimum (DCN) | 1.024″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 1.059″ | Flange Diameter (DF) | 1.772″ |
| Overall Length (OAL) | 7.677″ |
Product Features
| Family Description | DrillForceMeister TIS L/D=3 Indexable head drill | Country of Origin | S.Korea |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
Shipping Info
Package Weight
2.132
