TIS400F40-3

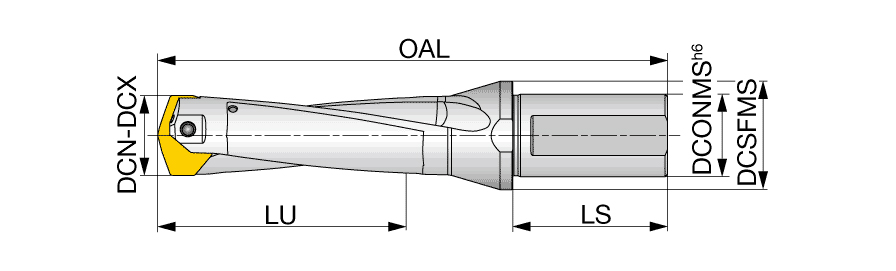

Drill; 40 mm to 41 mm Dia. × 40 mm Shank Dia. × 240.9 mm OAL × 126.3 mm LU × 68 mm Shank Length
| Usable Length (LU) | 126.3 mm | Shank Length (LS) | 68 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D = 3 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Master Insert Identification (MIID) | SMP400 |
| Insert Seat Size Code (SSC) | 40 | Point Length (PL) | 7.28 mm |
| Cutting Diameter Minimum (DCN) | 40 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 41 mm | Flange Diameter (DF) | 50 mm |
| Overall Length (OAL) | 240.9 mm |
Product Features

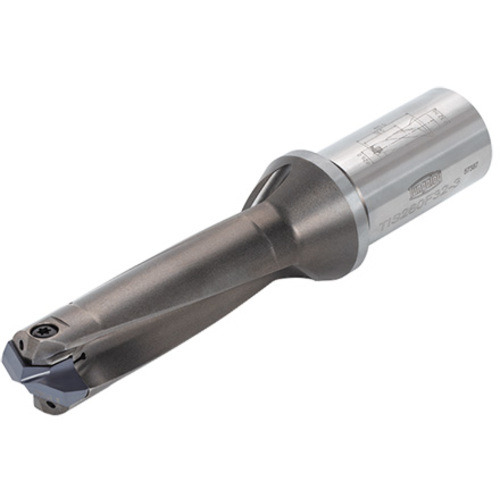

| Family Description | DrillForceMeister TIS L/D=3 Indexable head drill | Country of Origin | S.Korea |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
