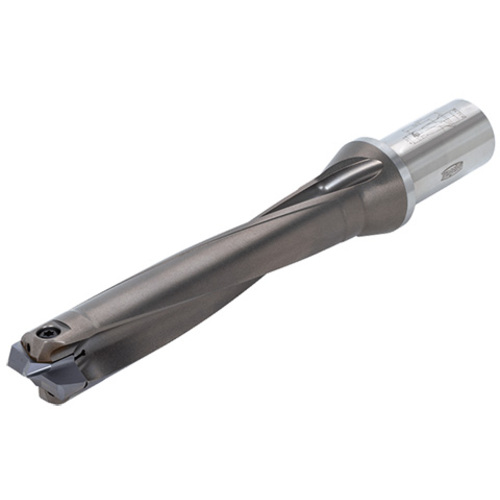

TIS260F32-5

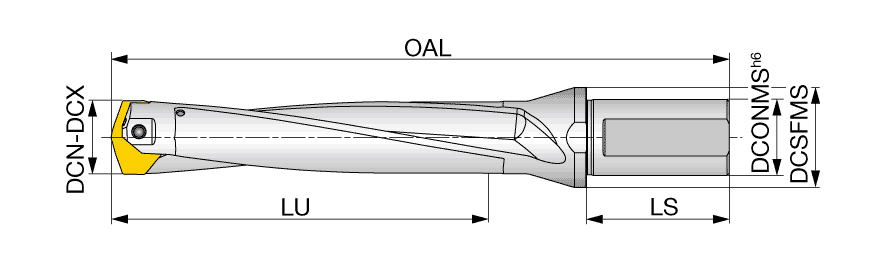

Drill; 26 mm to 26.9 mm Dia. × 32 mm Shank Dia. × 229 mm OAL × 134 mm LU × 60 mm Shank Length
| Usable Length (LU) | 134 mm | Shank Length (LS) | 60 mm |
| Application | | General Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | DRILL - L/D - 5 | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | SMP260 |
| Insert Seat Size Code (SSC) | 26 | Point Length (PL) | 4.73 mm |
| Cutting Diameter Minimum (DCN) | 26 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 26.9 mm | Flange Diameter (DF) | 40 mm |
| Overall Length (OAL) | 229 mm |
Product Features
| Family Description | DrillForceMeister TIS L/D=5 Indexable head drill | Country of Origin | S.Korea |
| Remarks | Note: An overall length (OAL) differs based on each head geometry. |
