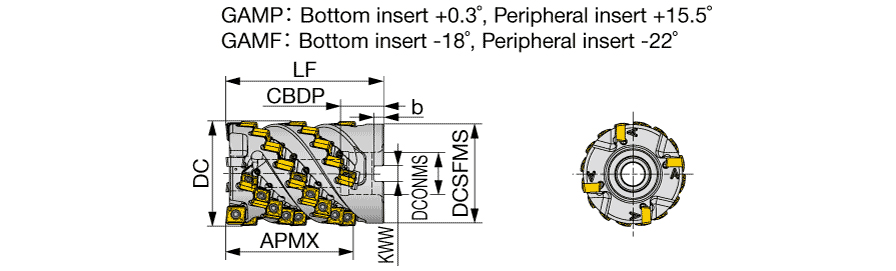

LPSX10U2.50B1.00L3.0R05
| Application | | Shoulder Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 50 | Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 3.011″ | Body Material | Steel |

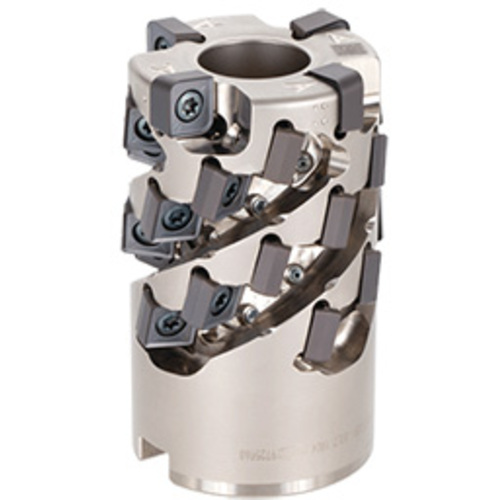

| Overall Length (OAL) | 3-3/4″ | Tool Type | 90 Extended flute shell mill |
| Arbor Style | A |
Product Features
| Family Description | Extended-flute cutter for rough operations of titanium alloy and cast iron parts | Country of Origin | JAPAN |
| Remarks | Note: Coolant needs to be supplied from the end of the arbor inlay. Coolant cannot be supplied from the set bolt. |
Shipping Info
Package Weight
0.000
Related Documentation

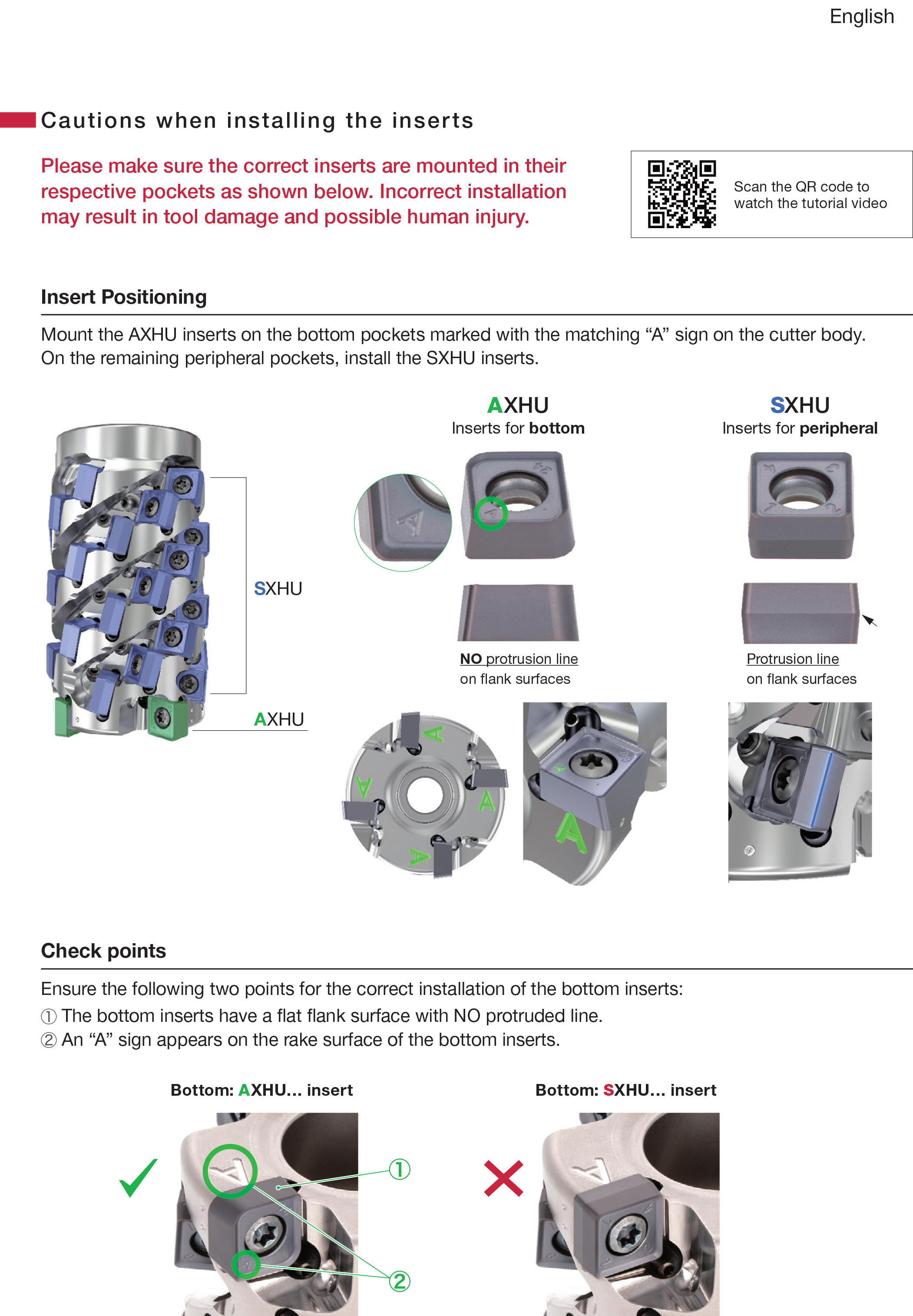

[Insert Positioning] @Mount the AXHU inserts on the bottom pockets marked with the matching "A" sign on the cutter body. @On the remaining peripheral pockets, install the SXHU inserts. @[Check points] @Ensure the following two points for the correct installation of the bottom inserts: @(1) The bottom inserts have a flat flank surface with NO protruded line. @(2) An "A" sign appears on the rake surface of the bottom inserts.
