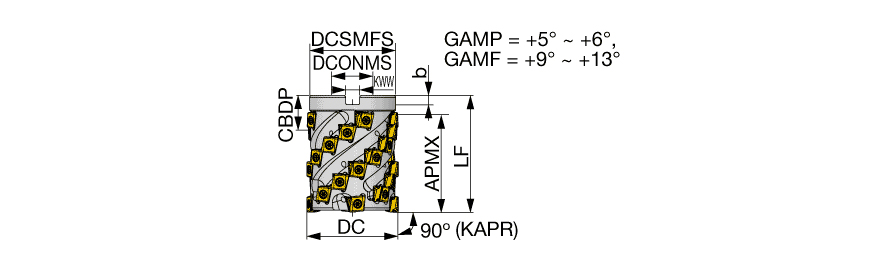

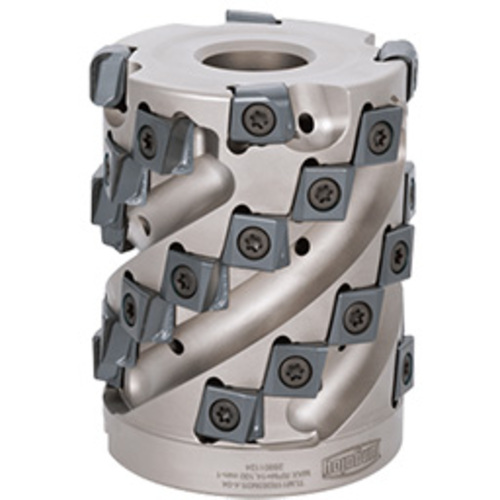

TLM11R200U0075A03
| Application | | Shoulder Milling | | Overall Length (OAL) | 2-3/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | LMMU1107**PNER-MJ |
| Cutting Item Count (CICT) | 21 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.303″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Square shoulder mills for roughing with tangential clamped insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
0.000
