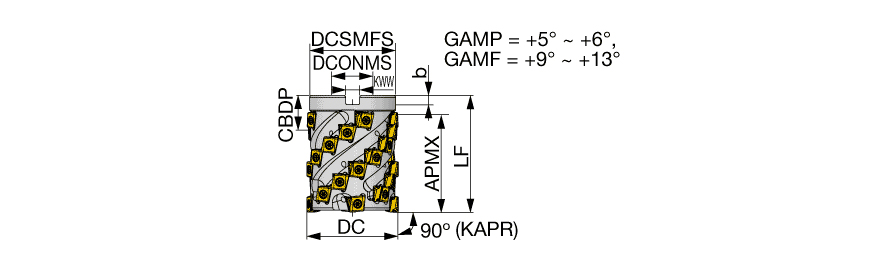

TLM11R050M22.0E03
| Application | | Shoulder Milling | | Overall Length (OAL) | 70 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | LMMU1107**PNER-MJ |
| Cutting Item Count (CICT) | 21 | Cutting Direction (HAND) | E |
| Depth of Cut Maximum (APMX) | 58.5 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Square shoulder mills for roughing with tangential clamped insert with 4 edges | Country of Origin | JAPAN |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
1.587
