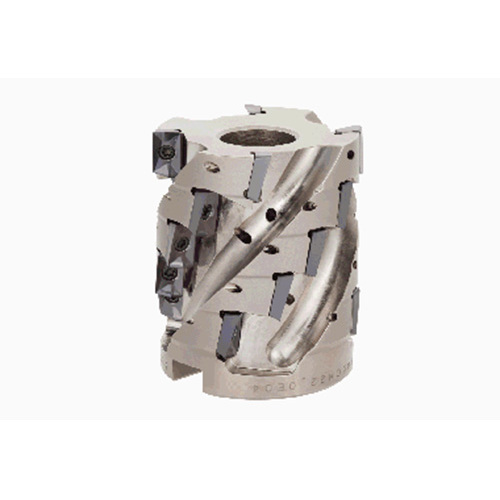

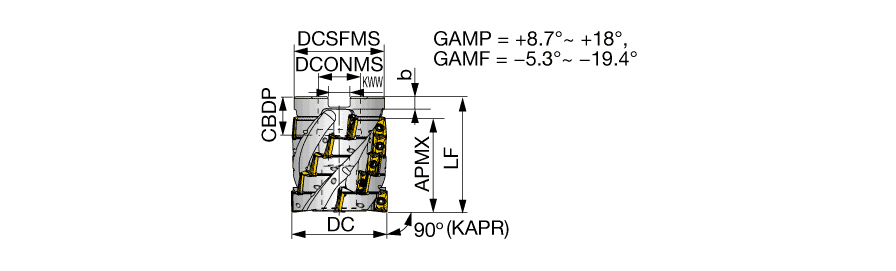

TLS11R200U0075A04
| Application | | Shoulder Milling | | Master Insert Identification (MIID) | AS*T11T3... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Arbor Style | A |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.921″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 2″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Tool Type | 90 Extended flute shell mill |
| Overall Length (OAL) | 2.356″ |
Product Features
| Family Description | Highly productive shoulder square mills for roughing with ASMT/ASGT11 inserts | Country of Origin | JAPAN |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". From 2nd row onwards, please use insert with RE = 0.4 or 0.8 mm. Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
1.338
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
