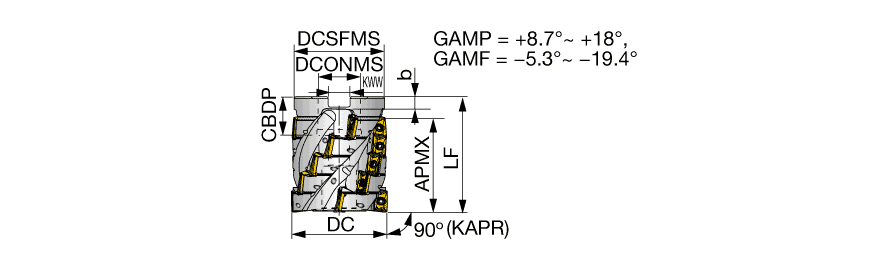

TLS11R050M22.0E04
| Application | | Shoulder Milling | | Master Insert Identification (MIID) | AS*T11T3... |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Arbor Style | A |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 48.8 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 50 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Tool Type | 90 Extended flute shell mill |
| Overall Length (OAL) | 60 mm |
Product Features
| Family Description | Highly productive shoulder square mills for roughing with ASMT/ASGT11 inserts | Country of Origin | JAPAN |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". From 2nd row onwards, please use insert with RE = 0.4 or 0.8 mm. Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
1.323
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
