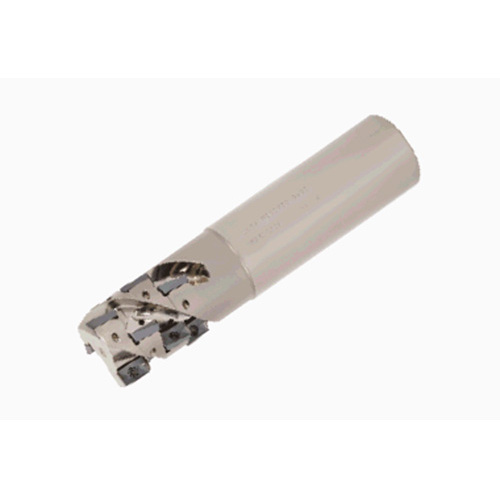

ELS11R125U0125W03

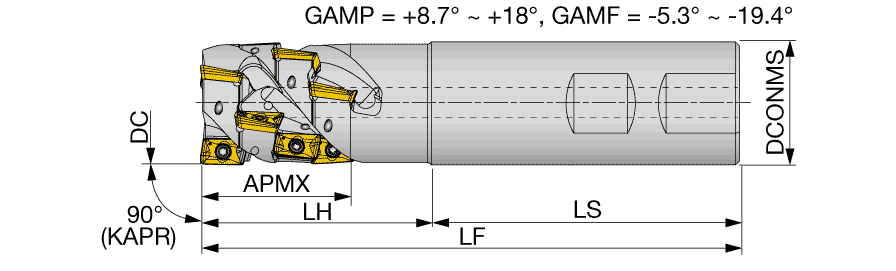

| Application | | Shoulder Milling | | Overall Length (OAL) | 4-1/2″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | AS*MT11T3... |
| Cutting Item Count (CICT) | 12 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.496″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 1-1/4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Highly productive endmills for roughing with ASMT/ASGT11 inserts | Country of Origin | Japan |
| Remarks | When using inserts with corner radius RE >= 2.0 mm, standard cutter bodies have to be modified "R". Please click on "More Info". From 2nd row onwards, please use insert with RE = 0.4 or 0.8 mm. |
Shipping Info
Package Weight
1.316
Related Documentation
When using inserts with corner radius RE >= 2.0 mm, "R" of standard cutter bodies have to be modified to 2.0 mm.
