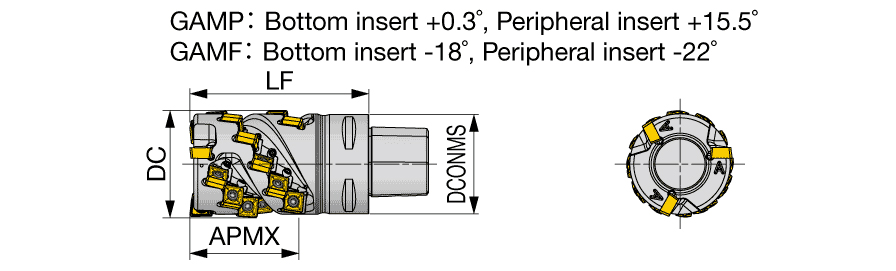

LPSX10M054C5L055R03
| Application | | Face contact interface | Shoulder Milling | | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 21 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 54 mm | Body Material | Steel |

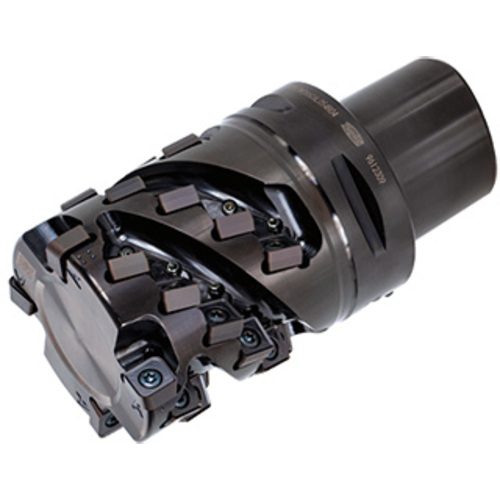

| Overall Length (OAL) | 90 mm | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Extended-flute cutter for rough operations of titanium alloy and cast iron parts | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
Related Documentation

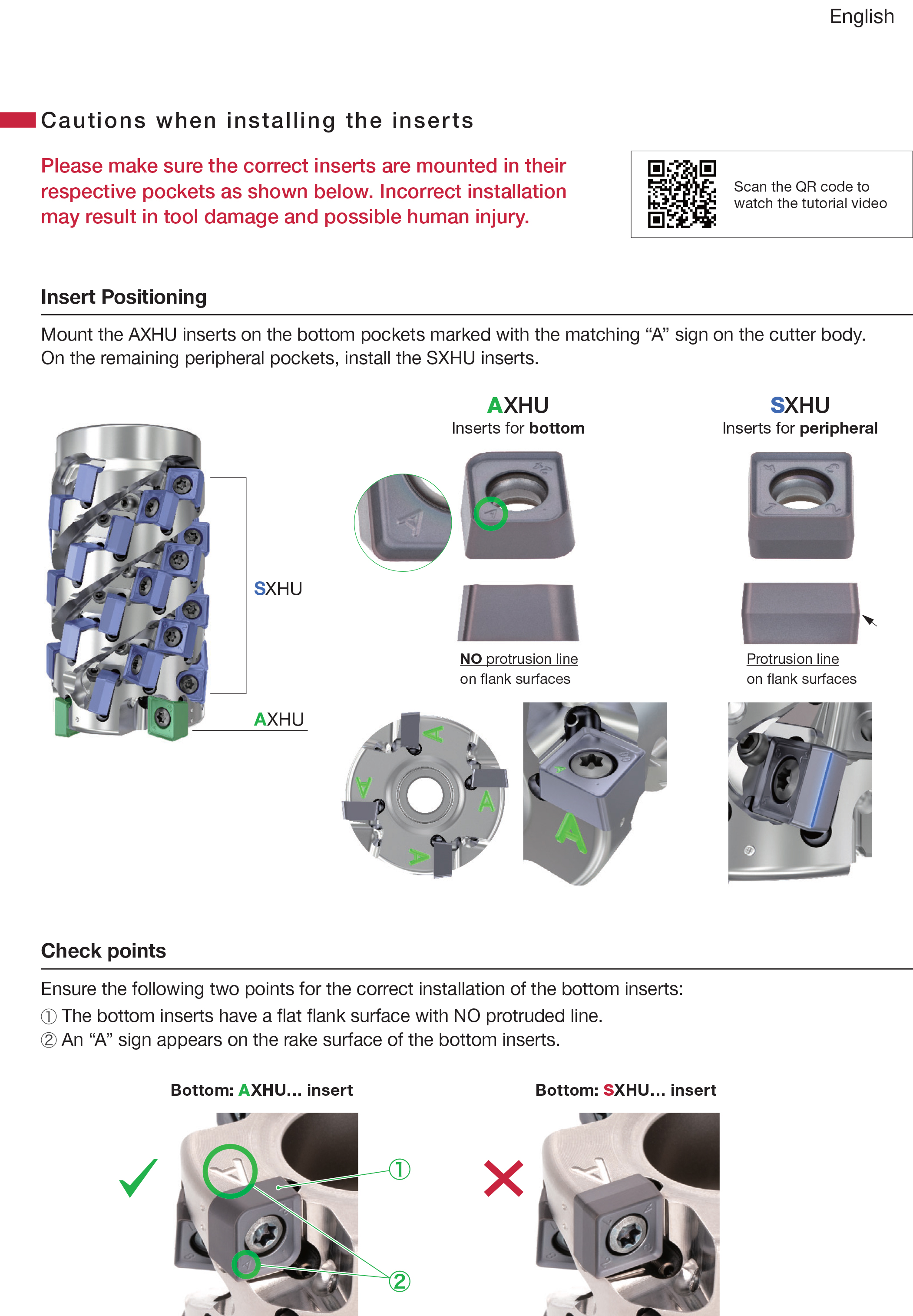

[Insert Positioning] @Mount the AXHU inserts on the bottom pockets marked with the matching "A" sign on the cutter body. @On the remaining peripheral pockets, install the SXHU inserts. @[Check points] @Ensure the following two points for the correct installation of the bottom inserts: @(1) The bottom inserts have a flat flank surface with NO protruded line. @(2) An "A" sign appears on the rake surface of the bottom inserts.
