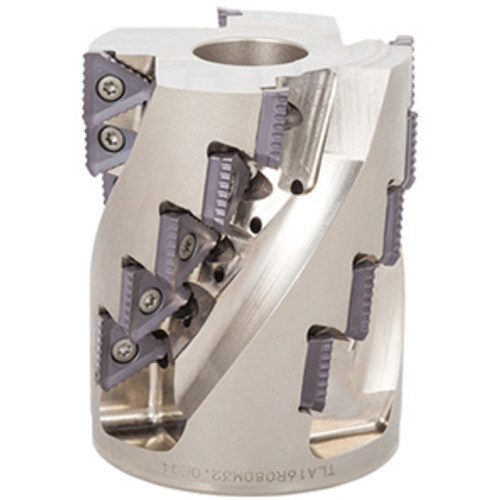

LPTC16U3.00B1.25L3.0R04

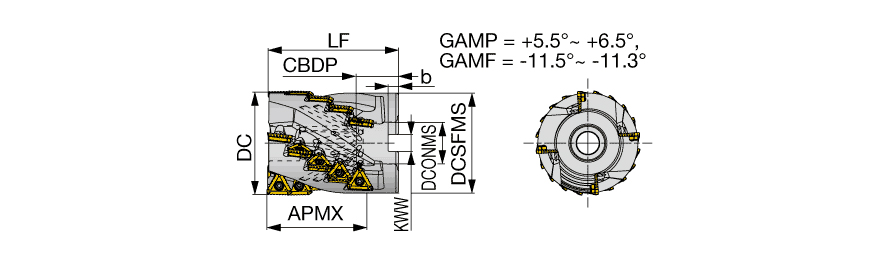

| Application | | Shoulder Milling | | Overall Length (OAL) | 4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | TC*T16... |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.992″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Square Shoulder milling cutters for Roughing with shred insert; Bore Type | Country of Origin | Japan |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. |
Shipping Info
Package Weight
4.851
