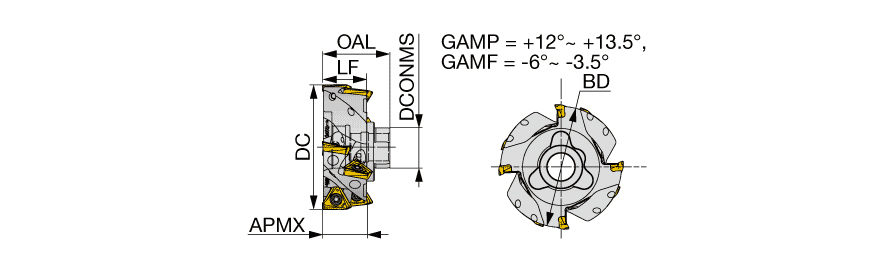

| Application | | Shoulder Milling | | Overall Length (OAL) | 1.102″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Master Insert Identification (MIID) | TO*T15... |
| Cutting Item Count (CICT) | 10 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 1.102″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 4″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.299″ |
Product Features

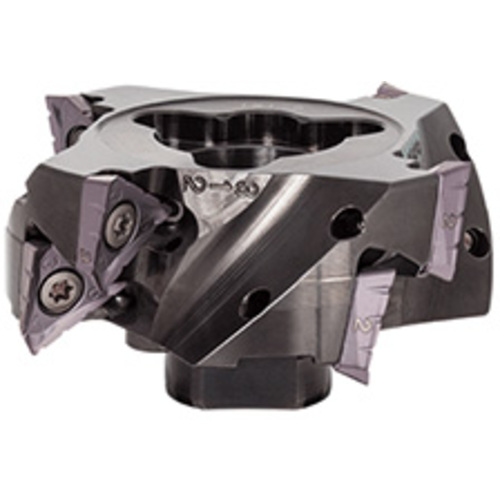

| Family Description | Sub-unit to mount on TLA15 main unit for longer Max. ap reach | Country of Origin | JAPAN |
| Remarks | For setting a TLA15 S sub unit and setting NMJ inserts, click on "Product report". For a center bolt for adding TLA15 S sub units to TLA15 main units, click on "Accessories". For the combination of TLA15 main units, TLA15 S sub units and center bolts, click on "More info". |
Shipping Info
Package Weight
2.729
Related Documentation
The combination of TLA15 main units, TLA15-S sub-units and center bolts
