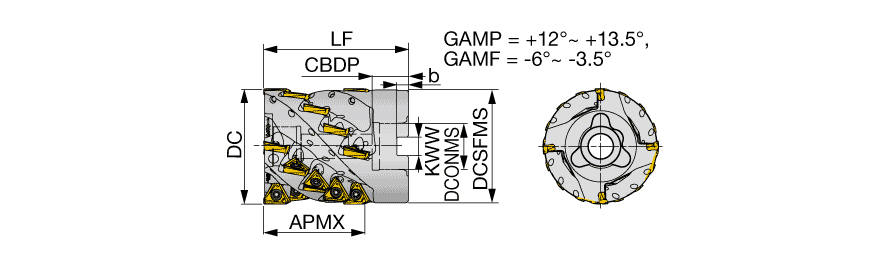

| Application | | Shoulder Milling | | Overall Length (OAL) | 3.94″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | TO*T15... |
| Cutting Item Count (CICT) | 20 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 2.756″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 3″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Extended Flute square shoulder mills for roughing with triangular inserts. Up to 2 TLA15-S sub-units can be added on a TLA15 main unit to increase depth of cut. | Country of Origin | Japan |
| Remarks | Coolant can be supplied from the end face of the centering location bore in the arbor. However, cannot be supplied from the center bolt. For setting a TLA15 S sub unit and setting NMJ inserts, click on "Product report". For a center bolt for adding TLA15 S sub units to TLA15 main units, click on "Accessories". For the combination of TLA15 main units, TLA15 S sub units and center bolts, click on "More info". |
Shipping Info
Package Weight
4.939
Related Documentation
The combination of TLA15 main units, TLA15-S sub-units and center bolts
