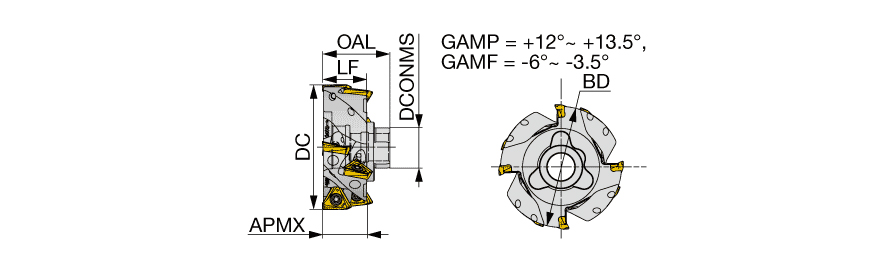

| Application | | Shoulder Milling | | Overall Length (OAL) | 28.2 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Master Insert Identification (MIID) | TOMT15... |
| Cutting Item Count (CICT) | 8 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 28 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 80 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 27 mm |
Product Features
| Family Description | Sub-unit to mount on TLA15 main unit for longer Max. ap reach | Country of Origin | JAPAN |
Shipping Info
Package Weight
1.488
Related Documentation

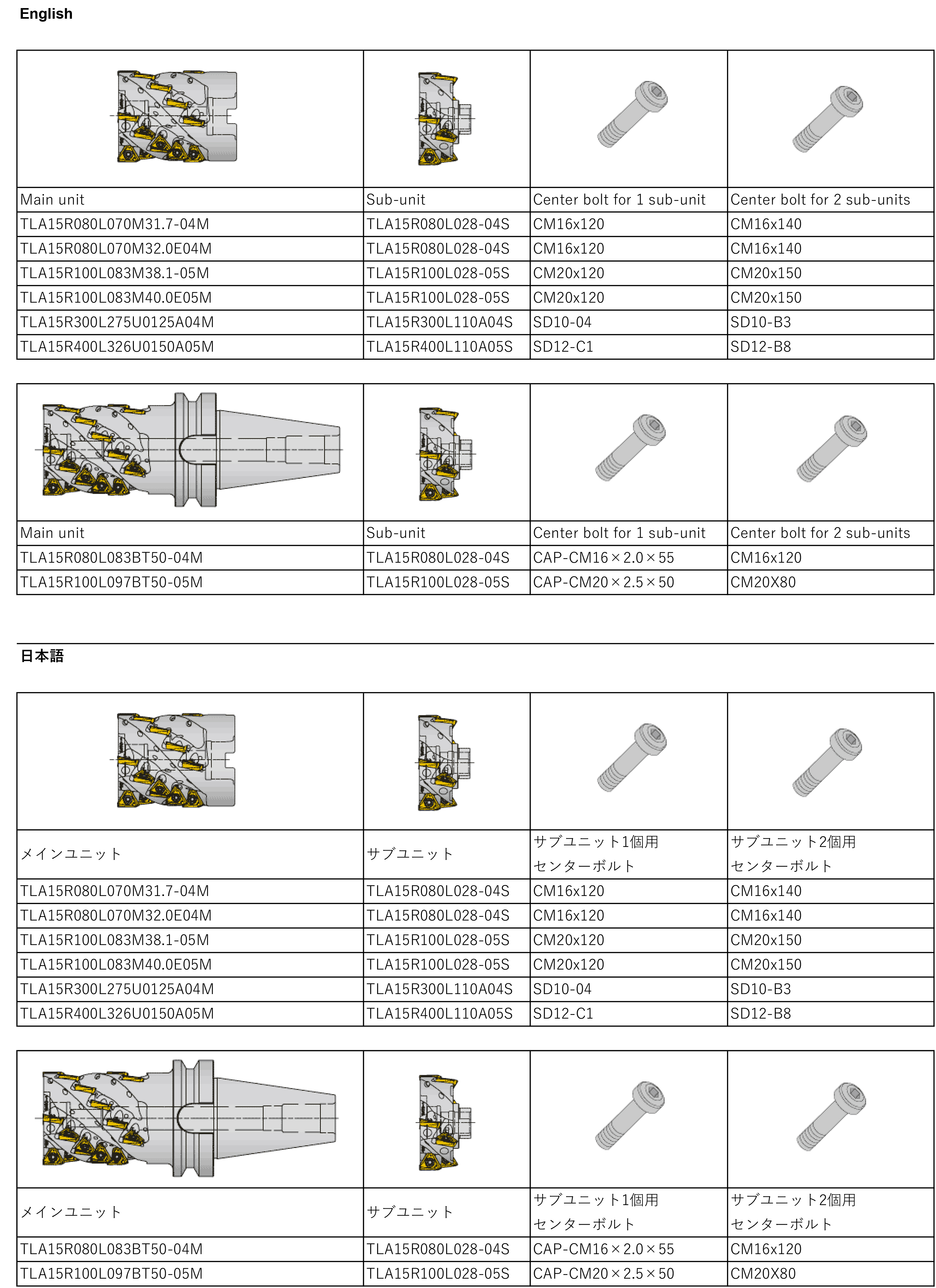

The combination of TLA15 main units, TLA15-S sub-units and center bolts
