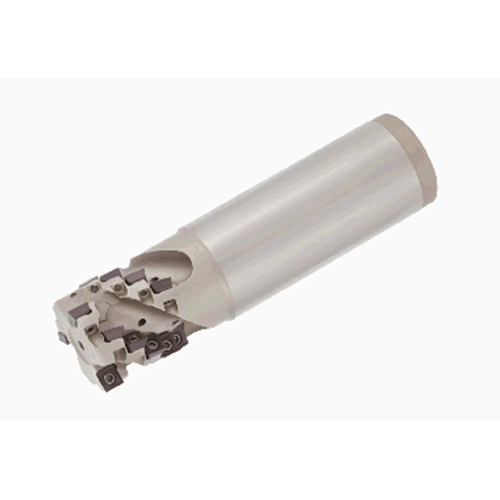

ELD05R025M25.0W03

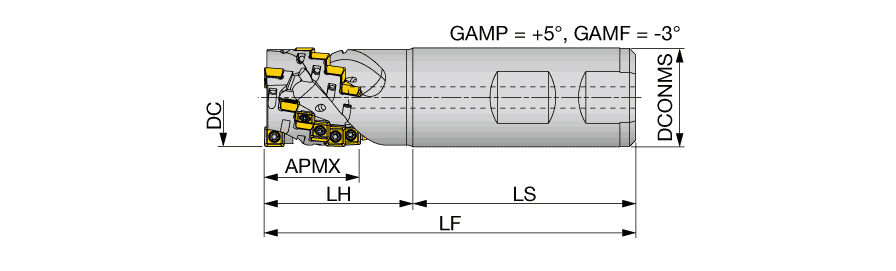

| Application | | Shoulder Milling | | Overall Length (OAL) | 95 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | SD*T050204... |
| Cutting Item Count (CICT) | 18 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 24.2 mm | Measurement Type | Metric |
| Cutting Diameter (DC) | 25 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Highly dense shoulder square endmills for roughing with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.741
