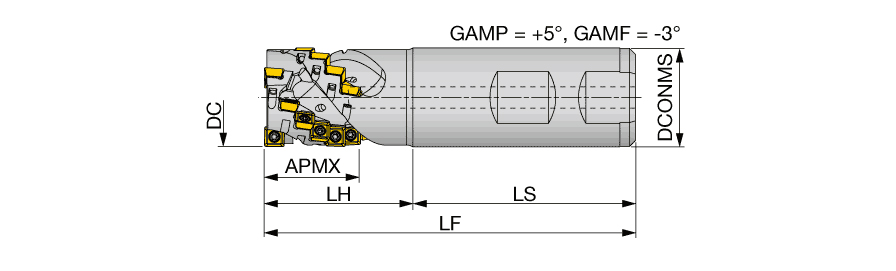

ELD05R100U0100W03
| Application | | Shoulder Milling | | Overall Length (OAL) | 3-3/4″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 | Master Insert Identification (MIID) | SD*T050204... |
| Cutting Item Count (CICT) | 18 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.953″ | Measurement Type | Inch |
| Cutting Diameter (DC) | 1″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Tool Type | 90 Extended flute shell mill |
Product Features
| Family Description | Highly dense shoulder square endmills for roughing with small SDMT05 inserts | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.758
