C6SVJCR45065-16N

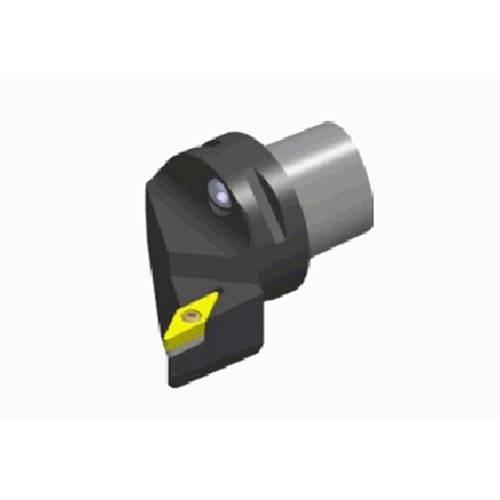

Turning Toolholder; 4.055″ OAL × 2.48″ Shank Dia. ; Right Hand ; Steel
| Overall Length (OAL) | 4.055″ | Master Insert Identification (MIID) | VCMT332 |
| Functional Length (LF) | 2.559″ | Application | | Face contact interface | For 35deg Rhombic insert | |
| Functional Width (WF) | 1.772″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 6.693″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TungCap Screw-on clamp toolholder with 93 deg approach angle, for positive 35 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | The last character of designation is "N": Applicable for 7 MPa coolant. The last character of designation isn't "N": Applicable for 3 MPa coolant. The items without DMIN and DMIN2 cannot be used for boring. |
Shipping Info
Package Weight
3.042
