C6ADNNN00100-15N

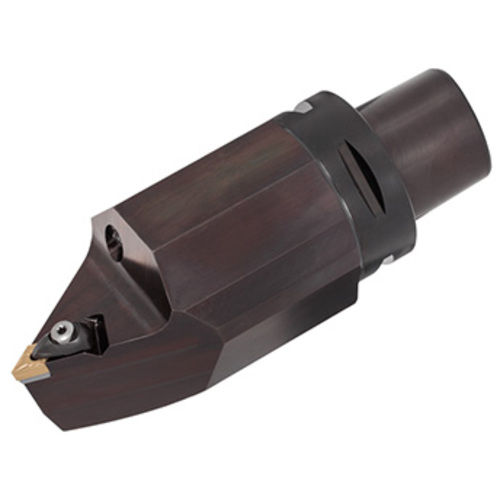

Turning Toolholder; 5.433″ OAL × 2.48″ Shank Dia. ; Neutral ; Steel
| Overall Length (OAL) | 5.433″ | Master Insert Identification (MIID) | DNMG432 |
| Functional Length (LF) | 3.937″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Width (WF) | 0″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 7.48″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Neutral |
Product Features
| Family Description | TungCap Double-clamp toolholder with 62.5 deg approach angle, for negative 55 deg rhombic inserts | Country of Origin | Japan |
| Remarks | The last character of designation is "N": Applicable for 7 MPa coolant. The last character of designation isn't "N": Applicable for 3 MPa coolant. Option: ASD423 (shim for DN**1506...) |
Shipping Info
Package Weight
4.542
