C5ADJNR35060-15N

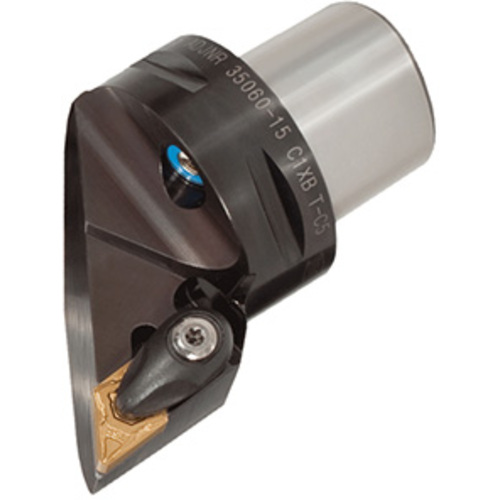

Turning Toolholder; 3.543″ OAL × 1.969″ Shank Dia. ; Right Hand ; Steel

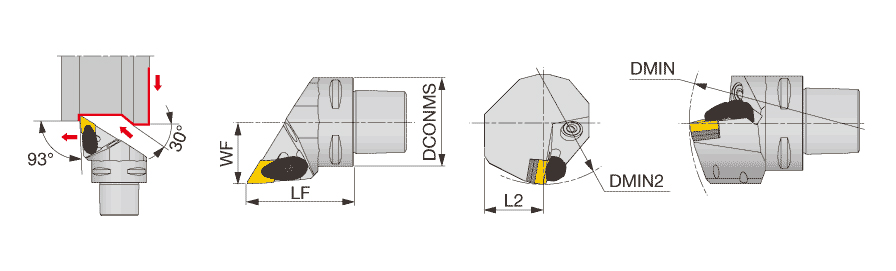

| Overall Length (OAL) | 3.543″ | Master Insert Identification (MIID) | DNMG432 |
| Functional Length (LF) | 2.362″ | Application | | Face contact interface | For 55deg Rhombic insert | |
| Functional Width (WF) | 1.378″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1.969″ | Tool Type | Tapered Shank Turning Tools |
| Minimum Bore Diameter (DMIN) | 6-1/2″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | TungCap Double-clamp toolholder with 93 deg approach angle, for negative 55 deg rhombic inserts | Country of Origin | JAPAN |
| Remarks | Applicable for 7 MPa coolant. Optional parts for C*ADJN****** 15N: ASD423 (Shim for DN**1506...) |
Shipping Info
Package Weight
1.967
