S32-SNR22-H

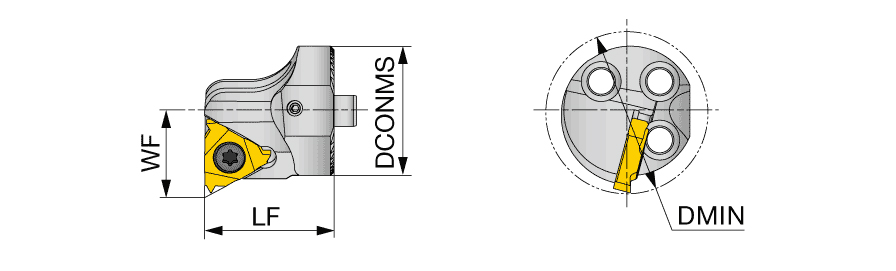

| Functional Length (LF) | 1.26″ | Master Insert Identification (MIID) | 22IRN60 |
| Functional Width (WF) | 0.866″ | Application | | Internal Threading | |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.575″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features

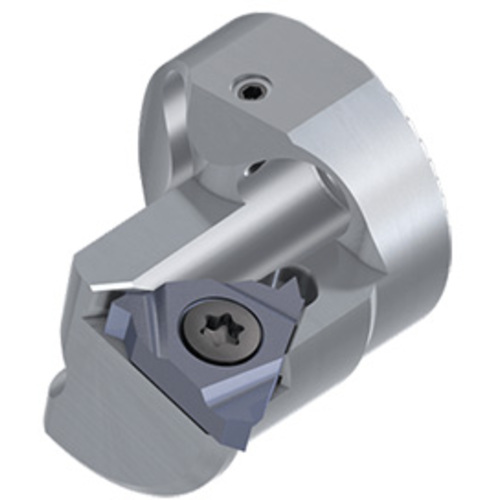

| Family Description | Screw-on clamp exchangeable boring head for internal threading | Country of Origin | Japan |
| Remarks | Use right hand toolholders (SNR... type) with right hand inserts (**IR...). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
149
