S40-SDXCR11T-H

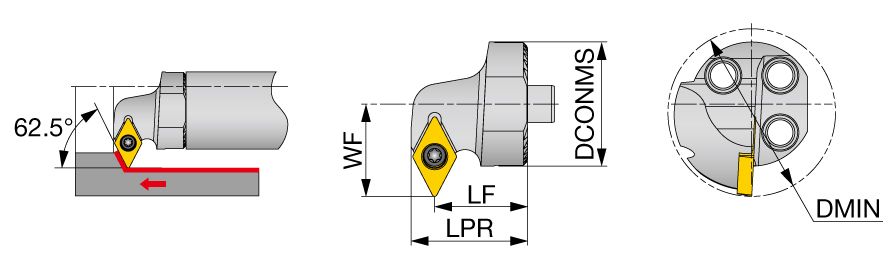

| Functional Length (LF) | 0.787″ | Master Insert Identification (MIID) | DCMT32.51 |
| Functional Width (WF) | 1.063″ | Application | | For 55deg Rhombic insert | |
| Connection Diameter Machine Side (DCONMS) | 1.575″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.968″ | Tool Type | Indexble Boring heads |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

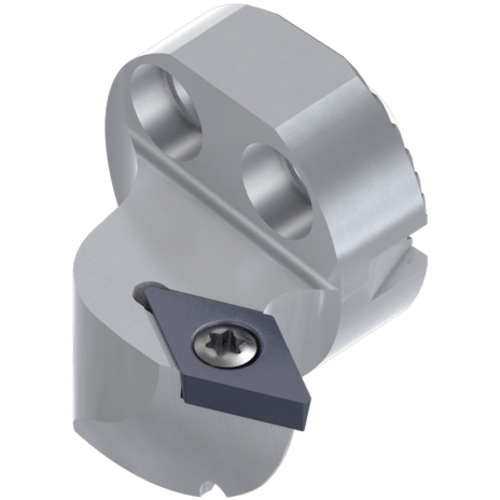

| Family Description | Screw-on clamp exchangeable boring head for Posi 55 deg rhombic inserts with 7 deg clearance | Country of Origin | Japan |
| Remarks | When using a right hand or left hand insert, use right hand toolholders (R) with left hand inserts (L), use left hand toolholders (L) with right hand inserts (R). DMIN for a 50 mm shank is equal to the requested head size plus 10 mm. For a 60 mm shank, the DMIN is the requested head size plus 20 mm. |
Shipping Info
Package Weight
209
