A19G-QR12
Turning Toolholder; 2.854″ OAL × 0.709″ Shank Height × 3/4″ Shank Dia. ; Steel

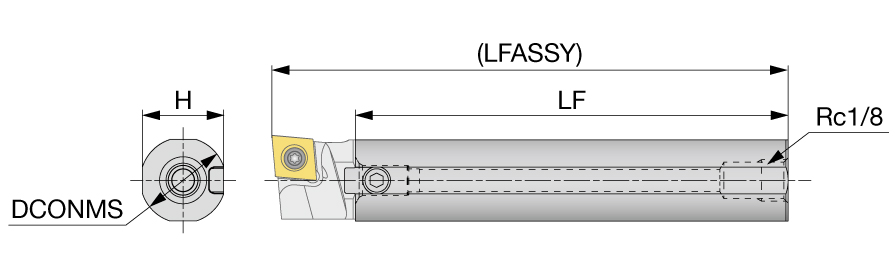

| Shank Height (H) | 0.709″ | Application | | External grooving | For Miniature machining | Parting off | |
| Overall Length (OAL) | 2.854″ | Body Material | Steel |
| Functional Length (LF) | 2.756″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
Product Features
| Family Description | Round shank for modular heads, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | When the screw cannot be accessed with a P 3 key due to little space between the adjacent tool, use P 3B key (sold separately) with the ball head instead. |
Shipping Info
Package Weight
0.000
