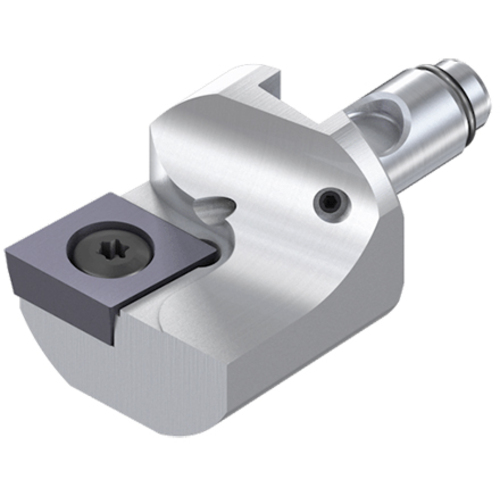

QR12D-SCLCL09-CHP
Turning Toolholder; 1.362″ OAL × 0.768″ LH ; Left Hand ; Steel

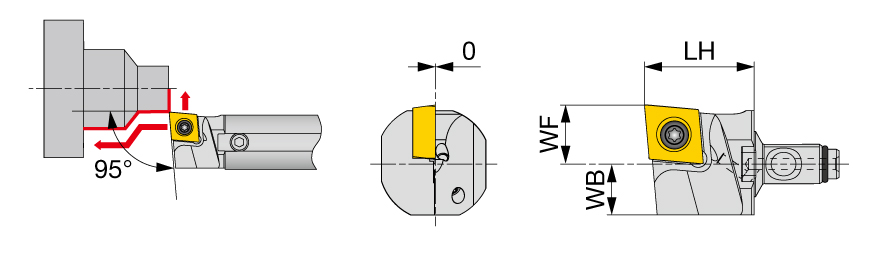

| Overall Length (OAL) | 1.362″ | Master Insert Identification (MIID) | CCGT32.50.5 |
| Functional Length (LF) | 0.783″ | Application | | For Miniature machining | |
| Head Length (LH) | 0.768″ | Body Material | Steel |
| Functional Width (WF) | 0.413″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Modular head for ISO 80 deg rhombic inserts, with high pressure coolant capability, for round shanks | Country of Origin | Japan |
| Remarks | When using a right hand or left hand insert, use left hand toolholders (L) with right hand inserts (R). |
