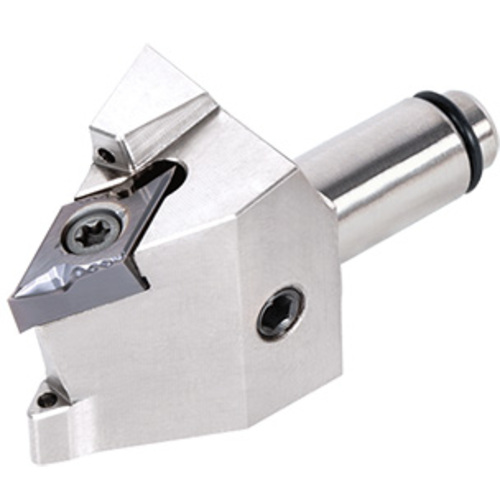

QC10-JSDNXR07-CHP
Turning Toolholder; 1.165″ OAL × 0.394″ Shank Height × 0.472″ Shank Width × 0.669″ LH ; Right Hand ; Steel

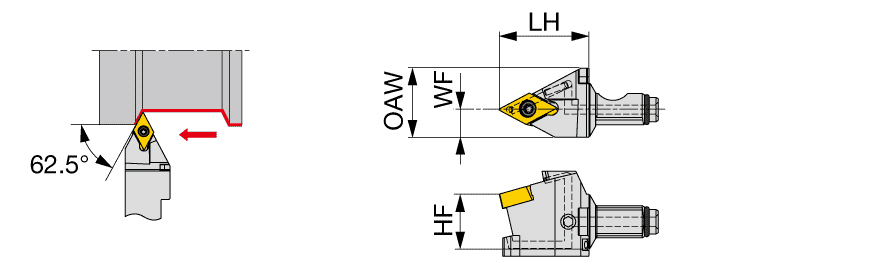

| Shank Height (H) | 0.394″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 0.472″ | Master Insert Identification (MIID) | DXGU220.5L |
| Overall Length (OAL) | 1.165″ | Application | | For Miniature machining | |
| Functional Length (LF) | 0.685″ | Body Material | Steel |
| Head Length (LH) | 0.669″ | Measurement Type | Inch |
| Functional Width (WF) | 0.236″ |
Product Features
| Family Description | Modular head with 62.5 deg approach angle, for DX*U inserts, with high pressure coolant capability | Country of Origin | Japan |
| Remarks | Use right hand toolholders (R) with left hand inserts (L). Through coolant head. For using internal coolant, please select both a through coolant head and a through coolant shank. |
