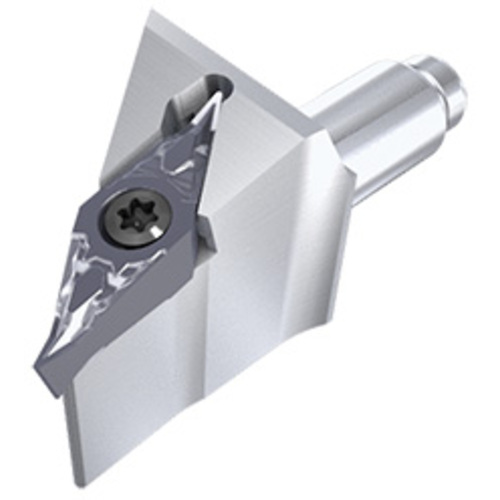

QC16-JSVJ2XR09

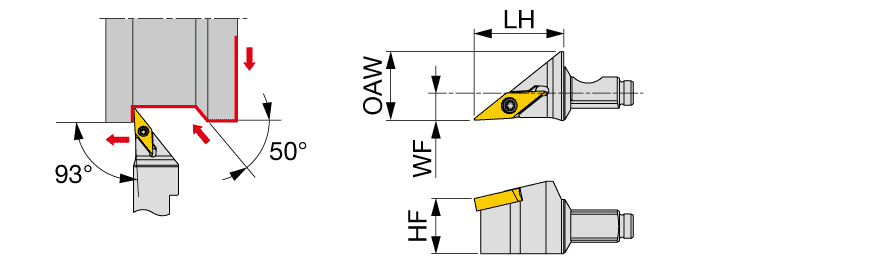

Turning Toolholder; 1.618″ OAL × 0.63″ Shank Height × 0.63″ Shank Width × 0.827″ LH ; Right Hand ; Steel
| Shank Height (H) | 0.63″ | Cutting Direction (HAND) | Right Hand |
| Shank Width (B) | 0.63″ | Master Insert Identification (MIID) | VXGU73.50.5L |
| Overall Length (OAL) | 1.618″ | Application | | For Miniature machining | |
| Functional Length (LF) | 0.843″ | Body Material | Steel |
| Head Length (LH) | 0.827″ | Measurement Type | Inch |
| Functional Width (WF) | 0.315″ |
Product Features
| Family Description | Modular head without offset for VXGU inserts | Country of Origin | JAPAN |
| Remarks | Use right hand toolholders (R) with left hand inserts (L). |
