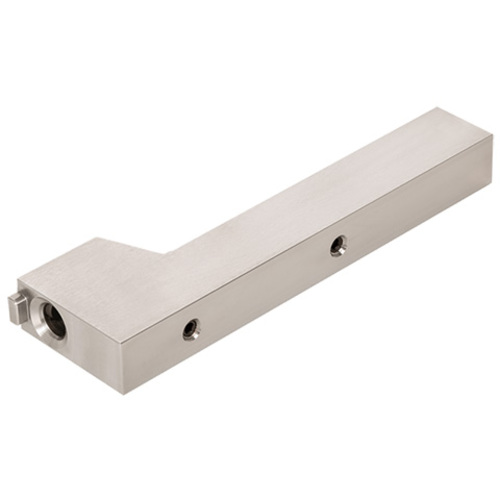

QC-08X-F10-CHP
Turning Toolholder; 4.035″ OAL × 1/2″ Shank Height × 5/8″ Shank Width ; Neutral ; Steel
| Shank Height (H) | 1/2″ | Cutting Direction (HAND) | Neutral |
| Shank Width (B) | 5/8″ | Application | | External grooving | For Miniature machining | Parting off | |
| Overall Length (OAL) | 4.035″ | Body Material | Steel |
| Functional Length (LF) | 3.937″ | Measurement Type | Inch |
| Functional Width (WF) | 0.861″ |
Product Features
| Family Description | Stepped-head shank for modular heads, with high pressure coolant capability | Country of Origin | JAPAN |
| Remarks | Through coolant shank. For using internal coolant, please select both a through coolant head and a through coolant shank. |
Shipping Info
Package Weight
0.000
